7.6 Power MOSFET Drain-Source Voltage

Figure 7-9 and Figure 7-10 show the low-side and high-side MOSFET drain-source voltage (VDS) at 80-A load. The voltage is measured with 1-GHz bandwidth and at the solder mask openings near the U1_P1 IC using a 1-GHz differential probe.

Timescale = 40 ns/div, CH1 = Low-side VDS at 5 V/div
Figure 7-9 Low-side MOSFET VDS

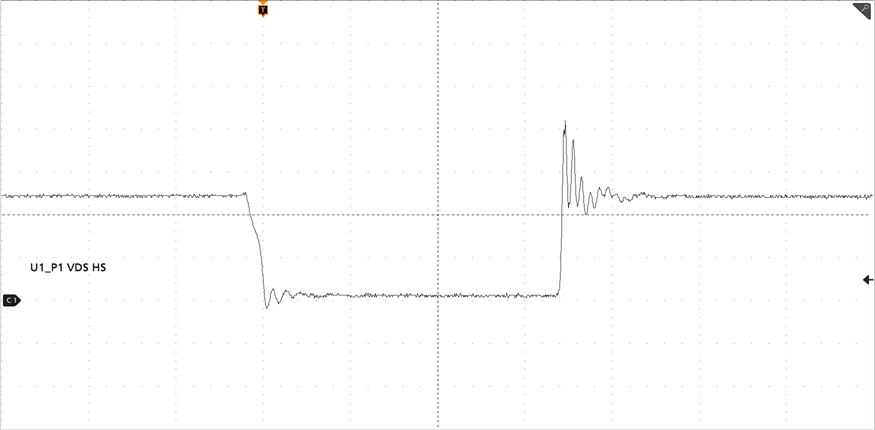

Timescale = 40 ns/div, CH1 = High-side VDS at 5 V/div
Figure 7-10 High-side MOSFET VDS
