7.9 Control On With Pre-biased Output

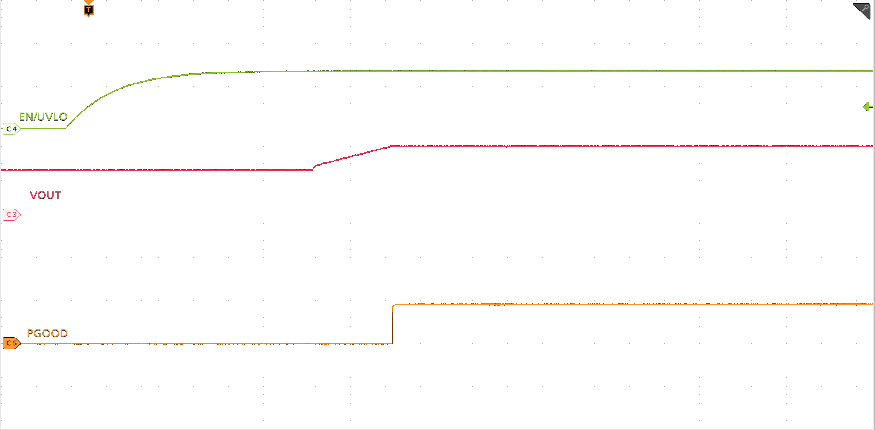

Figure 7-15 illustrates the control on waveforms with a pre-biased output voltage.

Timescale = 1 ms/div, CH3 = VOUT at 500mV/div, CH4 = EN/UVLO at 2 V/div, CH5 = PGOOD at 5 V/div
Figure 7-15 Start-Up From Control With Pre-biased Output
