7.7 Control On

Figure 7-11 and Figure 7-12 illustrate the start-up from control on waveforms at 0-A and 80-A output.

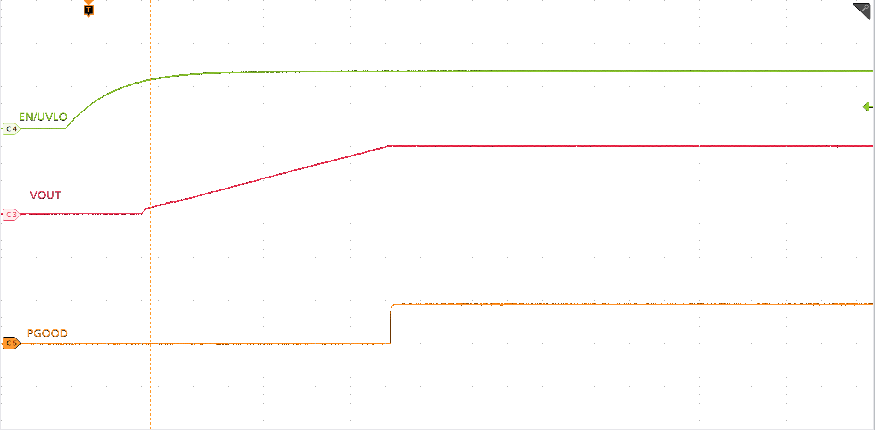

Timescale = 1 ms/div, CH3 = VOUT at 500mV/div, CH4 = EN/UVLO at 2 V/div, CH5 = PGOOD at 5 V/div
Figure 7-11 Start-Up From Control, 0-A Load

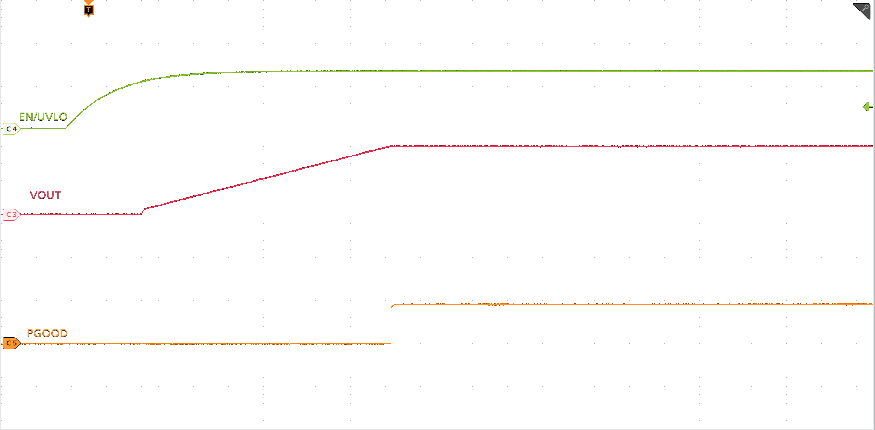

Timescale = 1 ms/div, CH3 = VOUT at 500mV/div, CH4 = EN/UVLO at 2 V/div, CH5 = PGOOD at 5 V/div
Figure 7-12 Start-Up From Control, 80-A CC Load
