7.6 Typical Characteristics

TPS63070 D019_SLVSC58.gif
Vout = 5V I = 1A
Figure 1. Rds(on) of High-side Buck Switch
TPS63070 D021_SLVSC58.gif
Vout = 5V I = 1A
Figure 3. Rds(on) of Low-side Boost Switch

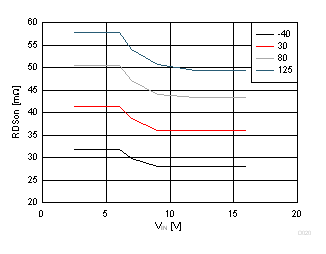

TPS63070 D020_SLVSC58.gif
Vout = 5V I = 1A
Figure 2. Rds(on) of High-side Boost Switch

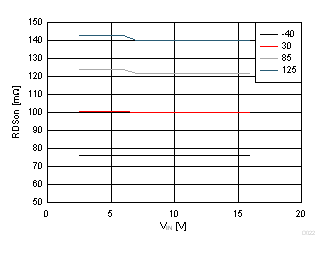

TPS63070 D022_SLVSC58.gif
A.
Vout = 5V I = 1A
Figure 4. Rds(on) of Low-side Buck Switch
