8.7 Typical Characteristics

TPS92630-Q1 D001_SLVSC76.gif
TA = 25ºC V(VIN) = 14 V Three LEDs
Figure 1. Current Accuracy vs Current Setting
TPS92630-Q1 D003_SLVSC76.gif

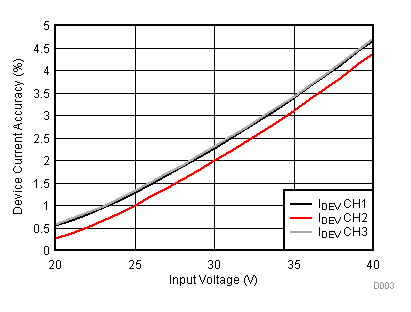

V(VIN) = 20 V I(setting) = 150 mA
Figure 3. Device Current Accuracy vs Input Voltage
TPS92630-Q1 D007_SLVSC76.gif

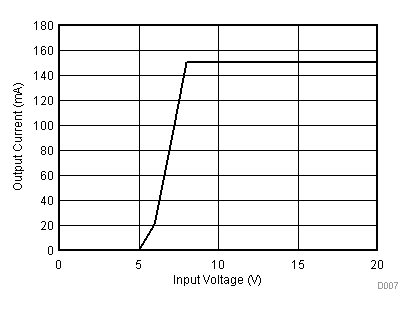

3 white LEDs LEDs in series I(setting) = 150 mA
Figure 5. Output Current vs Input Voltage

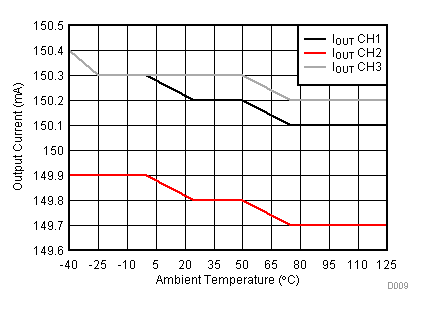

TPS92630-Q1 D009_SLVSC76.gif
I(setting)= 150 mA V(VIN) = 14 V
Figure 7. Output Current vs Ambient Temperature
TPS92630-Q1 PWM_200Hz_10Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 200 Hz Duty cycle = 10%
Figure 9. PWM Dimming
TPS92630-Q1 PWM_200Hz_90Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 200 Hz Duty cycle = 90%
Figure 11. PWM Dimming
TPS92630-Q1 PWM_2kHz_50Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 2000 Hz Duty cycle = 50%
Figure 13. PWM Dimming

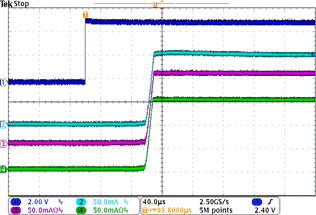

TPS92630-Q1 Power_Up_Waveform_SLVSC76.gif
I(setting) = 60 mA
Figure 15. Fast Power-Up Waveform
TPS92630-Q1 D002_SLVSC76.gif

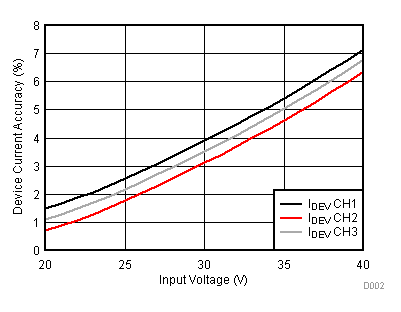

V(VIN) = 20 V I(setting) = 30 mA
Figure 2. Device Current Accuracy vs Input Voltage

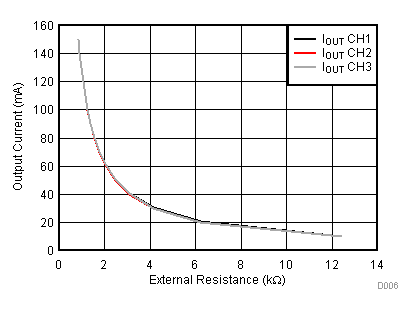

TPS92630-Q1 D006_SLVSC76.gif
A
Figure 4. Output Current vs External Resistance
TPS92630-Q1 D008_SLVSC76.gif

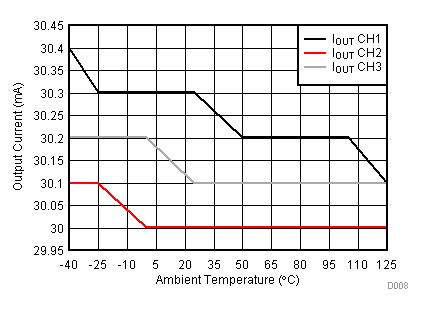

I(setting) = 30 mA V(VIN) = 14 V
Figure 6. Output Current vs Ambient Temperature
TPS92630-Q1 D010_SLVSC76.gif
A
Figure 8. Reference Voltage vs Junction Temperature With Thermal Foldback
TPS92630-Q1 PWM_200Hz_50Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 200 Hz Duty cycle = 50%
Figure 10. PWM Dimming

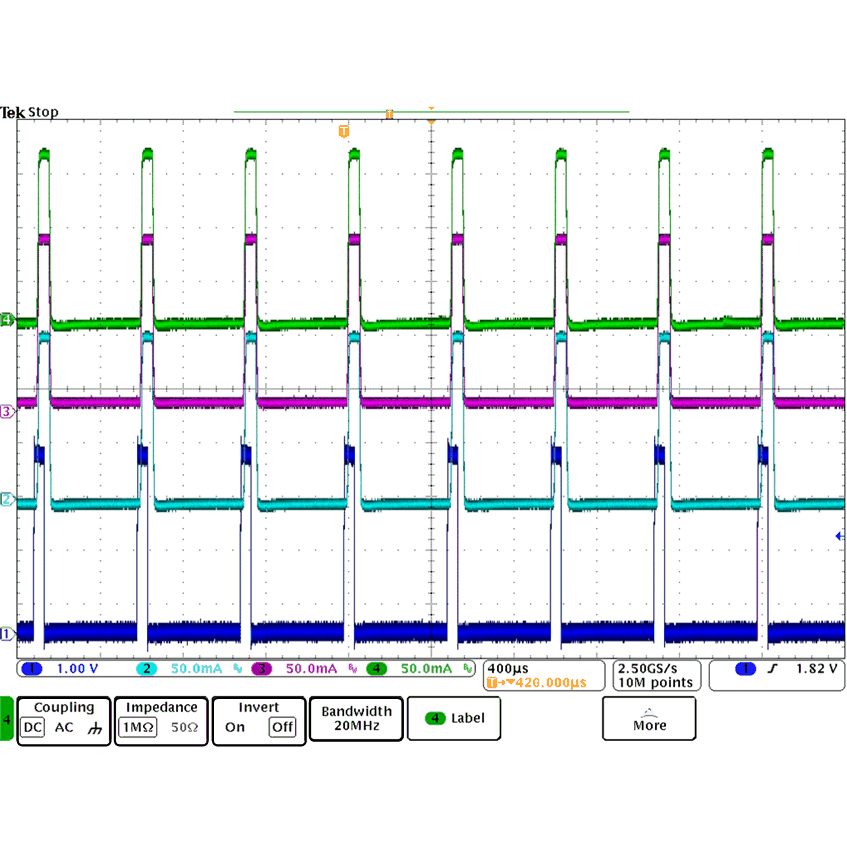

TPS92630-Q1 PWM_2kHz_10Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 2000 Hz Duty cycle = 10%
Figure 12. PWM Dimming

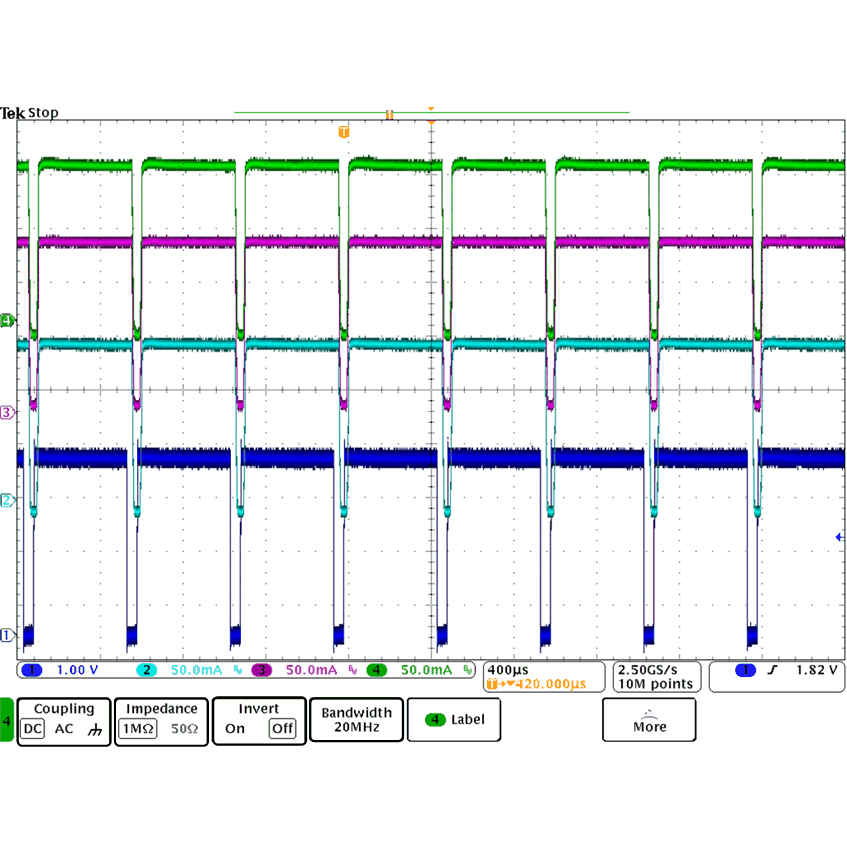

TPS92630-Q1 PWM_2kHz_90Percent_SLVSC76.gif
Ch. 1 = PWM input Ch. 2 = IOUT1 Ch. 3 = IOUT2
Ch. 4 = IOUT3 f(PWM) = 2000 Hz Duty cycle = 90%
Figure 14. PWM Dimming

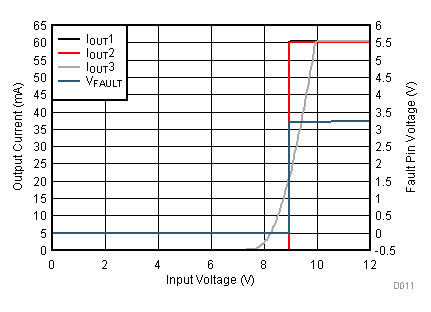

TPS92630-Q1 D011_SLVSC76.gif
V(VIN) = V(EN) V(VIN) = 0 V to 12 V I(setting) = 60 mA
3 white LEDs dV/dt = 0.5 V/min
Figure 16. Slow Power-Up Waveform
