7.1 Typical Characteristics

TPS2HB16-Q1 Rja_time_1ch.gifFigure 3. Transient Thermal Impedance 1 Channel Enabled
TPS2HB16-Q1 CUarea_vs_rja.gif
Figure 5. RθJA vs Copper Area
TPS2HB16-Q1 IOUTSB_vs_Temp.gif
VOUTX = 0 V VENX = 0 V VDIAG_EN = 0 V
Both Channels
Figure 7. Output Leakage Current (IOUT(standby)) vs Temperature

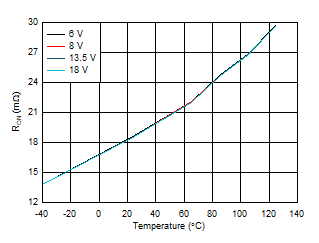

TPS2HB16-Q1 Ron_vs_Temp.gif
IOUTX = 200 mA VENX = 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 9. On Resistance (RON) vs Temperature
TPS2HB16-Q1 tDR_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 11. Turn-on Delay Time (tDR) vs Temperature
TPS2HB16-Q1 SRR_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 13. VOUT Slew Rate Rising (SRR) vs Temperature
TPS2HB16-Q1 tON_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 15. Turn-on Time (tON) vs Temperature
TPS2HB16-Q1 ISNS_vs_IOUT_temp.gif
VSEL1 = VSEL2 = 0 V VENX = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ
Figure 17. Current Sense Output Current (ISNSI ) vs Load Current (IOUT) Across Temperature
TPS2HB16-Q1 ISNST_vs_temp.gif
VSEL1 = 5 V VSEL2 = 0 V VDIAG_EN = 5 V
RSNS = 1 kΩ VENX = 0 V
Figure 19. Temperature Sense Output Current (ISNST) vs Temperature
TPS2HB16-Q1 VIL_vs_Temp.gif
VENX = 3.3 V to 0 V VOUTX = 0 V VDIAG_EN = 0 V
ROUTX = 1 kΩ
Figure 21. VIL vs Temperature
TPS2HB16-Q1 VIHYST_vs_Temp.gif
VENX = 0 V to 3.3 V and 3.3 V to 0 V VOUTX = 0 V VDIAG_EN = 0 V
ROUTX = 1 kΩ
Figure 23. VIHYS vs Temperature
TPS2HB16-Q1 IIH_vs_Temp.gif
VENX = 5 V VOUTX = 0 V VDIAG_EN = 0 V
ROUTX = 1 kΩ
Figure 25. IIH vs Temperature
TPS2HB16-Q1 ss2.png
ROUT1 = 2.6 Ω RSNS = 1 kΩ VDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 27. Turn-off Time (tOFF)
TPS2HB16-Q1 ss3.png
VBB = 13.5 V TA = 25°C IOUT1 = 5 A
VEN = 0 V to 5 V
Figure 29. SNS Output Current Measurement Enable on DIAG_EN PWM
TPS2HB16-Q1 TPS2HB16_B_U2_CH1__VBB=13p5__TEMP=25.png
LOUT = 5 µH to GND RLIM = 5 kΩ VSEL1 = VSEL2 = 0 V
VEN = 0 V to 5 V VDIAG_EN = 5 V TA = 25°C
Figure 31. Device Version B Short Circuit Event
TPS2HB16-Q1 tek00059.png
VBB = 13.5 V TA = 25°C LOUT = 5 mH
Figure 33. 5 mH Inductive Load Demagnetization
TPS2HB16-Q1 Rja_time_2ch.gifFigure 4. Transient Thermal Impedance Both Channels Enabled
TPS2HB16-Q1 ISB_vs_Temp.gif
VOUTX = 0 V VENX = 0 V VDIAG_EN = 0 V
Figure 6. Standby Current (ISB) vs Temperature
TPS2HB16-Q1 IQ_vs_Temp.gif
IOUTX = 0 A VENX = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ VSEL1 = VSEL2 = 0 V
Figure 8. Quiescent Current (IQ) vs Temperature
TPS2HB16-Q1 Ron_vs_Vbb.gif
IOUTX = 200 mA VENX = 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 10. On Resistance (RON) vs VBB

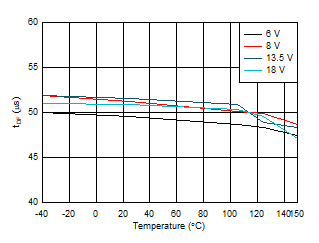

TPS2HB16-Q1 tDF_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 12. Turn-off Delay Time (tDF) vs Temperature
TPS2HB16-Q1 SRF_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 14. VOUT Slew Rate Falling (SRF) vs Temperature
TPS2HB16-Q1 tOFF_vs_Temp.gif
ROUTX = 2.6 Ω VENX = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 16. Turn-off Time (tOFF) vs Temperature
TPS2HB16-Q1 ISNS_vs_IOUT_vbb.gif
VSEL1 = VSEL2 = 0 V VENX = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ TA = 25°C
Figure 18. Current Sense Output Current (ISNSI) vs Load Current (IOUT) Across VBB
TPS2HB16-Q1 ISNSFH_vs_temp.gif
VSEL1 = VSEL2 = 0 V VENX = 0 V VDIAG_EN = 5 V
RSNS = 500 Ω VOUTX Floating Both Channels
Figure 20. Fault High Output Current (ISNSFH) vs Temperature
TPS2HB16-Q1 VIH_vs_Temp.gif
VENX = 0 V to 3.3 V VOUTX = 0 V VDIAG_EN = 0 V
ROUTX = 1 kΩ
Figure 22. VIH vs Temperature

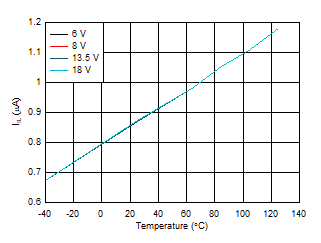

TPS2HB16-Q1 IIL_vs_Temp.gif
VENX = 0.8 V VOUTX = 0 V VDIAG_EN = 0 V
ROUTX = 1 kΩ
Figure 24. IIL vs Temperature
TPS2HB16-Q1 ss1.png
ROUT1 = 2.6 Ω RSNS = 1 kΩ VDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 26. Turn-on Time (tON)
TPS2HB16-Q1 Load Step Settling.png
ROUT1 = 2.6 Ω RSNS = 1 kΩ VSEL1 = VSEL2 = 0 V
IOUT1 = 1 A to 5 A VBB = 13.5 V
Figure 28. ISNS Settling time (tSNSION1) on Load Step
TPS2HB16-Q1 TPS2HB16_A_U12_CH1__VBB=13p5__TEMP=25.png
LOUT = 5 µH to GND RLIM = 5 kΩ VSEL1 = VSEL2 = 0 V
VEN = 0 V to 5 V VDIAG_EN = 5 V TA = 25°C
Figure 30. Device Version A Short Circuit Event
TPS2HB16-Q1 TPS2HB16_F_U6_CH1_60A__VBB=13p5__TEMP=25.png
LOUT = 5 µH to GND RLIM = 5 kΩ VSEL1 = VSEL2 = 0 V
VEN = 0 V to 5 V VDIAG_EN = 5 V TA = 25°C
Figure 32. Device Version F Short Circuit Event
