7.8 Typical Characteristics

Figure 7-2 ON-Resistance vs Supply Voltage
Figure 7-4 IN Quiescent Current vs Temperature
Figure 7-6 IN Shutdown Current vs Supply Voltage
Figure 7-8 EN/UVLO Rising Threshold vs Temperature
Figure 7-10 EN/UVLO Shutdown Falling Threshold vs Temperature
Figure 7-12 Overcurrent Protection Threshold Accuracy (Across Process, Voltage, and Temperature)
Figure 7-14 Scalable Fast-Trip Threshold:Current Limit Threshold (ILIM) Ratio vs Temperature
Figure 7-16 RCB - Forward Regulation Voltage vs Temperature
Figure 7-18 RCB - Forward Comparator Threshold vs Temperature
Figure 7-20 OVC Threshold vs Temperature
Figure 7-22 OVC Clamping Voltage (OVCSEL = Open) vs Load Current
Figure 7-24 ITIMER Discharge Current vs Temperature
Figure 7-26 ITIMER Internal Pullup Voltage vs Temperature
GUID-20201207-CA0I-HXTC-XBPK-CCZ8LWR7BDZS-low.gifFigure 7-28 PGTH Threshold vs Temperature
Figure 7-30 Time to Thermal Shut-Down During Inrush State
VIN = 5 V, COUT = 220 μF, CdVdt = Open, VEN/UVLO stepped up to 1.4 V
Figure 7-32 Start-Up with Enable
VIN = 5 V, COUT = 690 μF, CdVdt = 3300 pF, VEN/UVLO stepped up to 1.4 V
Figure 7-34 Inrush Current with Capacitive Load
COUT = 220 μF, PG pulled up to 3 V, –15 V hot-plugged to IN
Figure 7-36 Input Reverse Polarity Protection - Fast Ramp
ROVCSEL = GND, COUT = 220 μF, IOUT = 120 mA, VIN ramped up from 3.3 V to 6 V
Figure 7-38 Overvoltage Clamp Response
VIN = 5 V, CITIMER = 2.2 nF, COUT = 220 μF, RILM = 750 Ω, IOUT stepped from 2 A → 6 A → 2 A within 1 ms
Figure 7-40 Transient Overcurrent Blanking Timer Response
VIN = 5 V, RILM = 750 Ω, VEN/UVLO = 1.4 V, OUT stepped from Open → Short-circuit to GND
Figure 7-42 Output Short-Circuit During Steady State
VIN = 5 V, COUT = Open, OUT short-circuit to GND, RILM = 750 Ω, VEN/UVLO stepped from 0 V to 1.4 V
Figure 7-44 Power Up into Short-Circuit
Figure 7-3 Forward Voltage Drop vs Load Current
Figure 7-5 IN OFF State (UVLO) Current vs Temperature
Figure 7-7 IN Undervoltage Threshold vs Temperature
Figure 7-9 EN/UVLO Falling Threshold vs Temperature
Figure 7-11 Overcurrent Protection Threshold vs ILM Resistor
Figure 7-13 Analog Current Monitor Gain Accuracy
Figure 7-15 Steady State Fixed Fast-Trip Current Threshold vs Temperature
Figure 7-17 RCB - Reverse Comparator Threshold vs Temperature
Figure 7-19 Reverse Leakage Current During OFF State
Figure 7-21 OVC Clamping Voltage (OVCSEL = GND) vs Load Current
Figure 7-23 ITIMER Discharge Differential Voltage Threshold vs Temperature
Figure 7-25 ITIMER Internal Pullup Resistance vs Temperature
Figure 7-27 DVDT Charging Current vs Temperature
Figure 7-29 PG Low Voltage Without Input Supply vs Temperature
Figure 7-31 Time to Thermal Shut-Down During Steady State
VEN/UVLO = 1.5 V, COUT = 220 μF, CdVdt = Open, VIN ramped up to 5 V
Figure 7-33 Start-Up with Supply
VIN = 5 V, COUT = 690 μF, ROUT = 4 Ω, CdVdt = 3300 pF, VEN/UVLO stepped up to 1.4 V
Figure 7-35 Inrush Current with Resistive and Capacitive Load
COUT = 220 μF, PG pulled up to 3 V, VIN ramped down from 0 V to –15 V and then ramped up to 0 V
Figure 7-37 Input Reverse Polarity Protection - Slow Ramp
ROVCSEL = Open, COUT = 220 μF, IOUT = 150 mA, VIN ramped up from 5 V to 8 V
Figure 7-39 Overvoltage Clamp Response
VIN = 5 V, CITIMER = 2.2 nF, COUT = 220 μF, RILM = 750 Ω, IOUT stepped from 0 A → 6.7 A
Figure 7-41 Active Current Limit Response
VIN = 5 V, RILM = 750 Ω, VEN/UVLO = 1.4 V, OUT stepped from Open → Short-circuit to GND

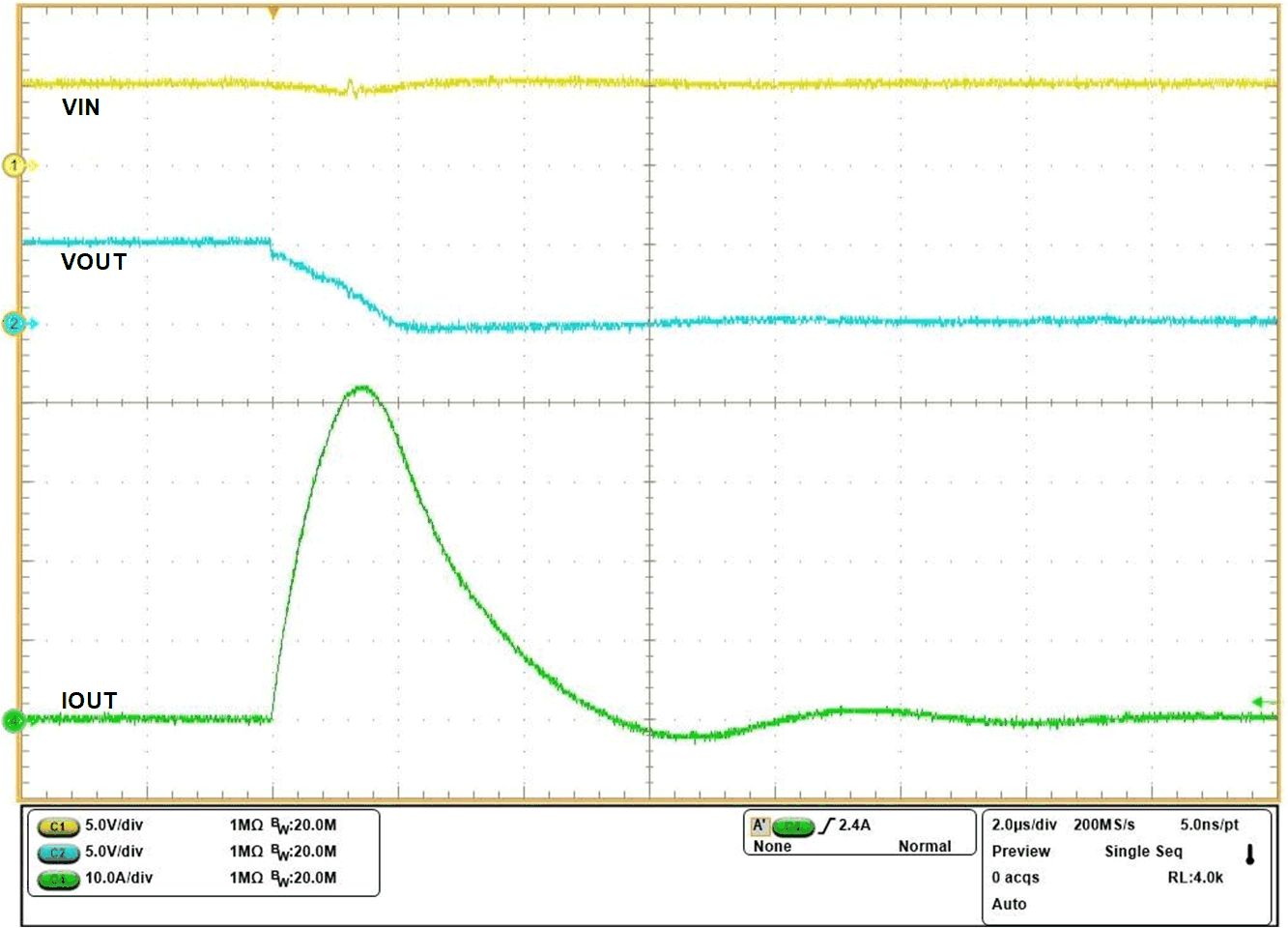

Figure 7-43 Output Short-Circuit During Steady State (Zoomed In)
