Tape and Reel Information

TPS923650 TPS923651
Device Package
Type
Package Drawing Pins SPQ Reel
Diameter (mm)
Reel
Width W1 (mm)
A0
(mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
(mm)
Pin1
Quadrant
TPS923651D1DSGR WSON DSG 8 3000 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
TPS923651D2DSGR WSON DSG 8 3000 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
TPS923651D1DGNR HVSSOP DGN 8 2500 330.0 12.4 5.3 3.4 1.4 8.0 12.0 Q1
TPS923651D2DGNR HVSSOP DGN 8 2500 330.0 12.4 5.3 3.4 1.4 8.0 12.0 Q1
TPS923650D1DSGR WSON DSG 8 3000 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
TPS923650D2DSGR WSON DSG 8 3000 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
TPS923650D1DGNR HVSSOP DGN 8 2500 330.0 12.4 5.3 3.4 1.4 8.0 12.0 Q1
TPS923650D2DGNR HVSSOP DGN 8 2500 330.0 12.4 5.3 3.4 1.4 8.0 12.0 Q1
TPS923650D1DRLR SOT583 DRL 8 4000 180.0 8.4 2.75 1.9 0.8 4.0 8.0 Q3
TPS923650D2DRLR SOT583 DRL 8 4000 180.0 8.4 2.75 1.9 0.8 4.0 8.0 Q3

TPS923650 TPS923651

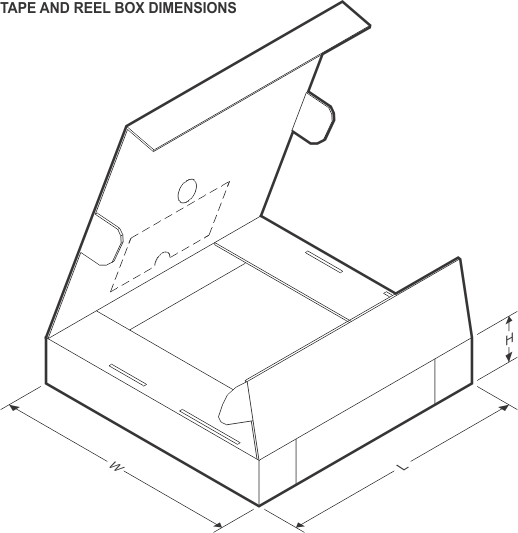

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
TPS923651D1DSGR WSON DSG 8 3000 210.0 185.0 35.0
TPS923651D2DSGR WSON DSG 8 3000 210.0 185.0 35.0
TPS923651D1DGNR HVSSOP DGN 8 2500 356.0 356.0 35.0
TPS923651D2DGNR HVSSOP DGN 8 2500 356.0 356.0 35.0
TPS923650D1DSGR WSON DSG 8 3000 210.0 185.0 35.0
TPS923650D2DSGR WSON DSG 8 3000 210.0 185.0 35.0
TPS923650D1DGNR HVSSOP DGN 8 2500 356.0 356.0 35.0
TPS923650D2DGNR HVSSOP DGN 8 2500 356.0 356.0 35.0
TPS923650D1DRLR SOT583 DRL 8 4000 210.0 185.0 35.0
TPS923650D2DRLR SOT583 DRL 8 4000 210.0 185.0 35.0
