2.9 Powering Up

Figure 2-9 and Figure 2-10 show the start-up waveforms for the TPS54622EVM-012. In Figure 2-9, the output voltage ramps up as soon as the input voltage reaches the UVLO threshold as set by the R1 and R2 resistor divider network. In Figure 2-10, the input voltage is initially applied and the output is inhibited by using a jumper at J3 to tie EN to GND. When the jumper is removed, EN is released. When the EN voltage reaches the enable-threshold voltage, the start-up sequence begins and the output voltage ramps up to the externally set value of 3.3 V. The input voltage for these plots is 12 V and the load is 1 Ω.

GUID-E9268417-D20C-46EC-B58D-4B24B57D1340-low.gifFigure 2-9 TPS54622EVM-012 Start-Up Relative to VIN

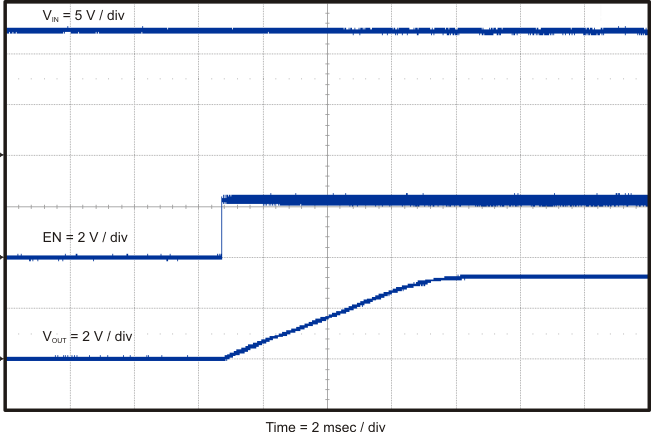

GUID-AAC36BD4-ABCC-42B6-9F30-7908575F7F3B-low.gifFigure 2-10 TPS54622EVM-012 Start-Up Relative to Enable
