2.6 Loop Characteristics

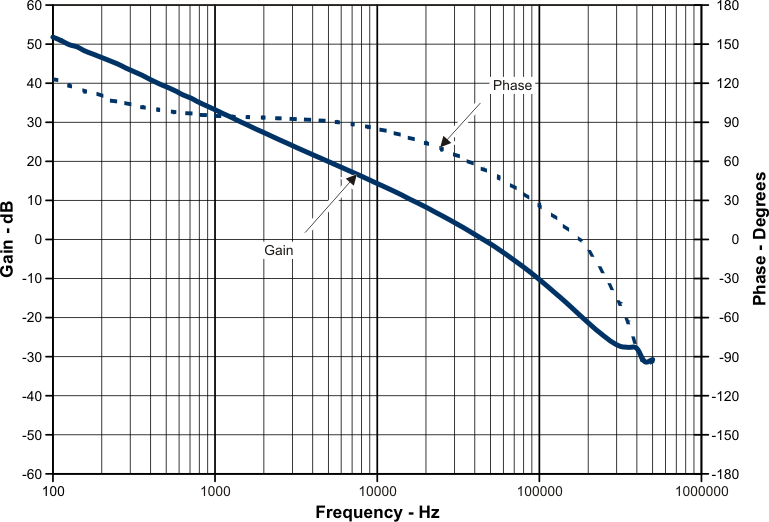

Figure 2-6 shows the TPS54622EVM-012 loop-response characteristics. Gain and phase plots are shown for VIN voltage of 12 V. Load current for the measurement is 1.9 A.

GUID-802AEAA6-5633-436C-9708-FFF911E74997-low.gif Figure 2-6 TPS54622EVM-012 Loop Response
