2.11 Hiccup Mode Current Limit

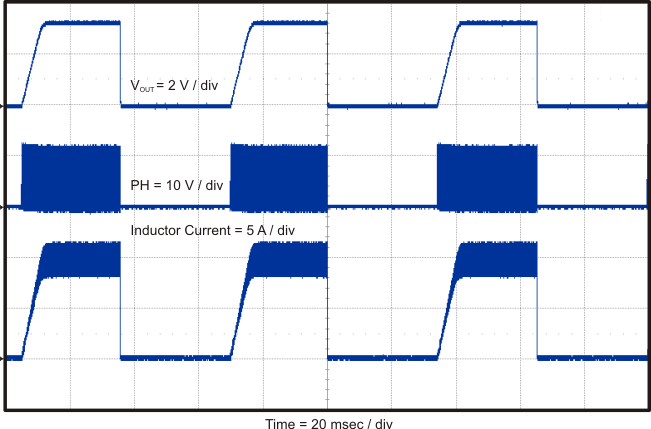

The TPS54623 features hiccup mode current limit. When an overcurrent event occurs, the TPS54623 shuts down and restarts. Figure 2-12 shows restart sequence in an overcurrent condition.

GUID-9729B6F7-262F-417B-981A-EC398AE99F2B-low.gifFigure 2-12 TPS54623EVM-012 Hiccup Mode Current Limit
