4.6.2 Load Transient Response Converter 2

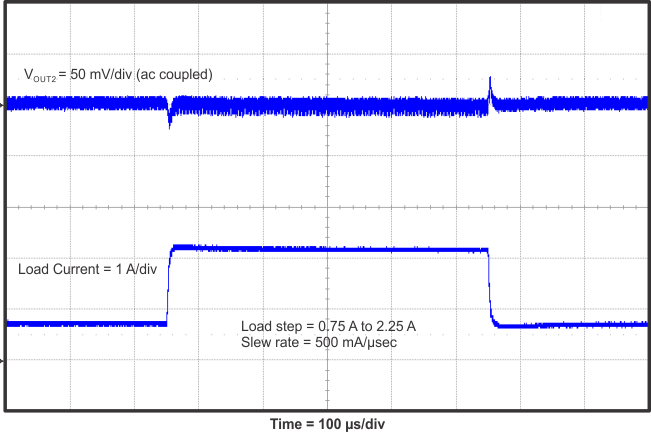

The response of converter 2 on the TPS542951EVM to a load transient is shown in Figure 4-10.

GUID-C5E898BF-7ACE-494B-AA64-AAE1C721EC2B-low.gifFigure 4-10 TPS542951EVM Converter 2 Load Transient Response
