6.1 Schematic

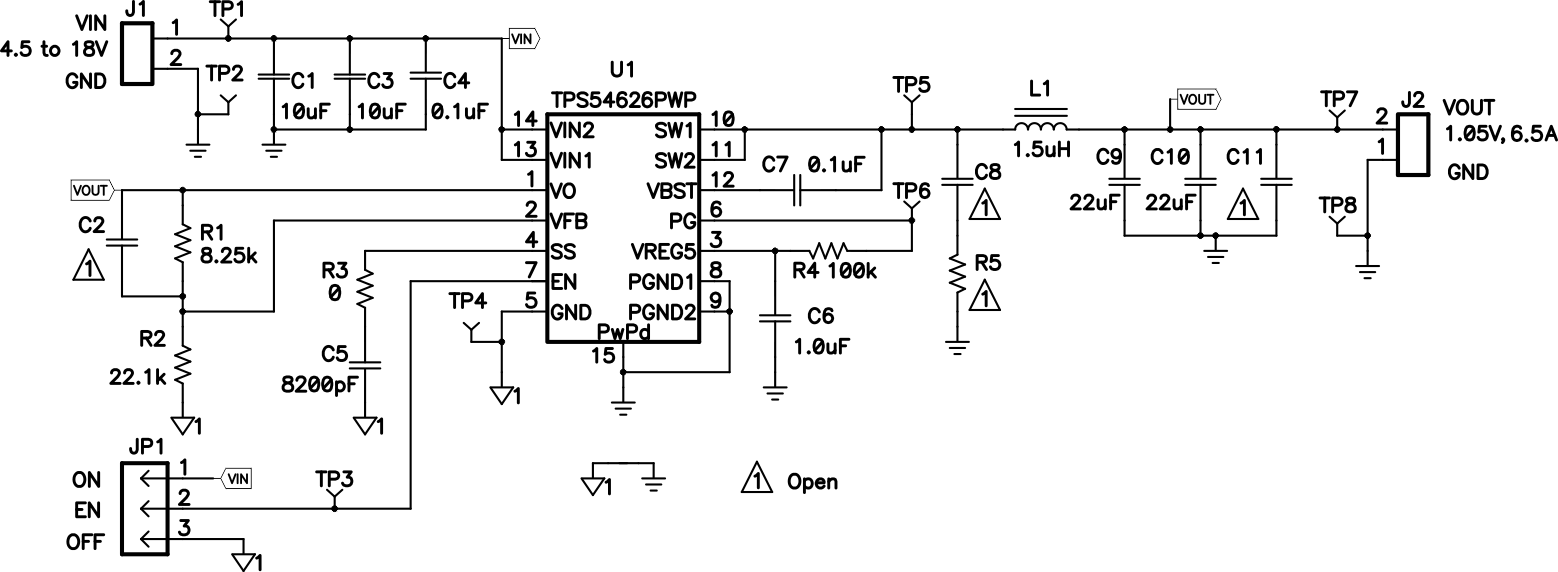

Figure 6-1 is the schematic for the TPS54626EVM.

GUID-7E52796A-296D-4989-8FD4-C43AAF7B17AB-low.gifFigure 6-1 TPS54626EVM-608 Schematic Diagram
