4.9 Start-Up
The TPS562201EVM-715 start-up waveform relative to VIN is shown in Figure 4-10. Load = 1 Ω resistive.
The TPS562201EVM-715 start-up waveform relative to enable (EN) is shown in Figure 4-11. Load = 1 Ω resistive.

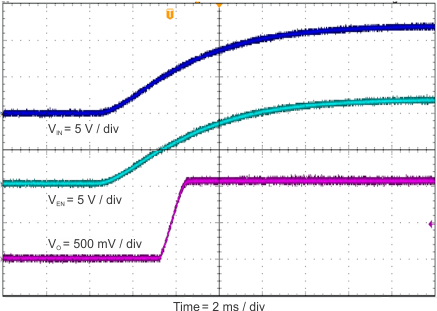

Figure 4-10 Start-Up Relative to Input Voltage
Figure 4-11 Start-Up Relative to EN
