4.8 Input Voltage Ripple

The TPS562201EVM-715 input voltage ripple is shown in Figure 4-9. The output current is as indicated.

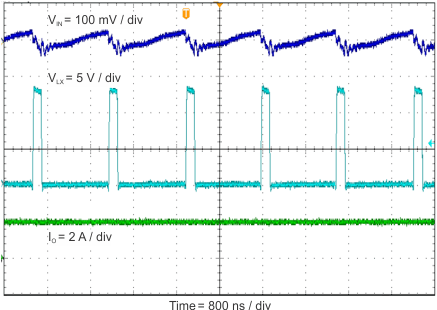

GUID-255FD71C-B3C8-478A-85DE-53249345C8AB-low.gifFigure 4-9 Input Voltage Ripple, IOUT = 2 A
