2.8 Input Voltage Ripple

Figure 2-10, Figure 2-11 and Figure 2-12 show the TPS54A20EVM-770 input voltage ripple. The load currents are 0 A, 5 A and 10 A. VIN = 12 V. The ripple voltage is measured directly across TP1 and TP2.

GUID-D8CACD40-B871-4C82-8CF5-A0E55D56F5B9-low.gifFigure 2-10 TPS54A20EVM-770 Input Ripple, 0 A Load

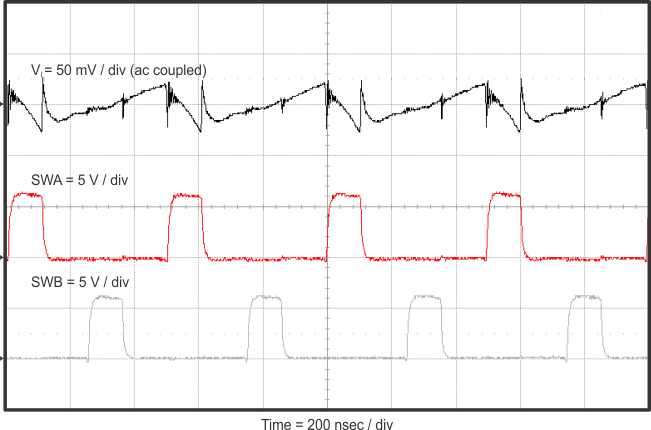

GUID-81B72CB8-3512-4D5C-8B12-950D1EB9D5FC-low.gifFigure 2-11 TPS54A20EVM-770 Input Ripple, 5 A Load
GUID-ED24718A-B14F-4145-8F2B-B2780EC6E03A-low.gifFigure 2-12 TPS54A20EVM-770 Input Ripple, 10 A Load
