2.6 Loop Characteristics

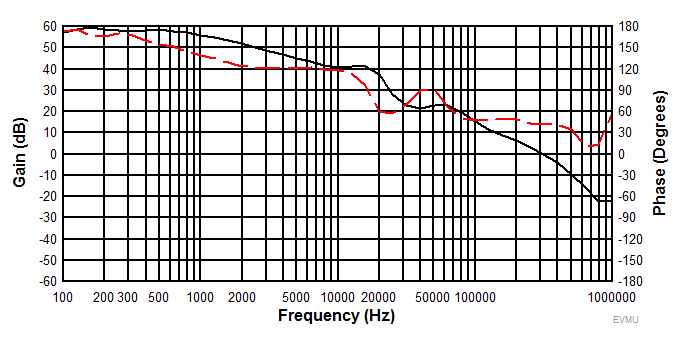

Figure 2-6 shows the TPS54A20EVM-770 loop-response characteristics. Gain and phase plots are shown for VIN voltage of 12 V. Load current for the measurement is 5 A.

GUID-F244ACAB-B191-4281-854A-8EB0F01C1507-low.gifFigure 2-6 TPS54A20EVM-770 Loop Response
