2.2 Efficiency

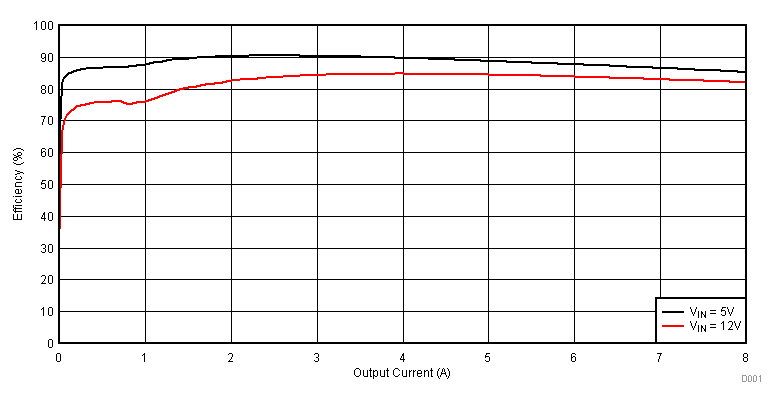

The efficiency of this EVM peaks at a load current of about 2.4 A and then decreases as the load current increases toward full load. Figure 2-1 shows the efficiency for the TPS568215EVM-762 at an ambient temperature of 25°C.

GUID-6F1D8C4F-F4A3-42E6-87D0-C41DF9A49C28-low.gifFigure 2-1 TPS568215EVM-762 Efficiency

Figure 2-2 shows the efficiency for the TPS568215EVM-762 using a semi-log scale to more easily show efficiency at lower output currents. The ambient temperature is 25°C.

GUID-3CC4F3DE-CA45-4D85-8FDC-2F0A279D9C0B-low.gifFigure 2-2 TPS568215EVM-762 Low Current Efficiency

The efficiency may be lower at higher ambient temperatures, due to temperature variation in the drain-to-source resistance of the internal MOSFET.
