2.5 Load Transients

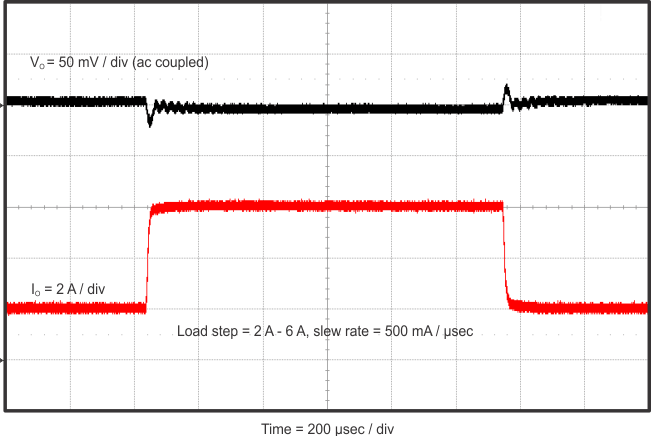

Figure 2-6 shows the TPS568215EVM-762 response to load transients. The current step is from 2 A to 6 A. The current step slew rate is 500 mA/µs. Total peak-to-peak voltage variation is as shown, including ripple and noise on the output. The transient waveform is measured using the on-board fast transient circuit.

GUID-49170A31-9A76-48B6-95DB-95A566771A40-low.gifFigure 2-6 TPS568215EVM-762 Transient Response
