4.9 Start-Up

The TPS562219AEVM-663 start-up waveform relative to VIN is shown in Figure 4-9. Load = 1 Ω resistive.

GUID-502CB9EE-D0A0-460E-9571-A0F0F599C6A6-low.gifFigure 4-9 TPS562219AEVM-663 Start-Up Relative to VIN

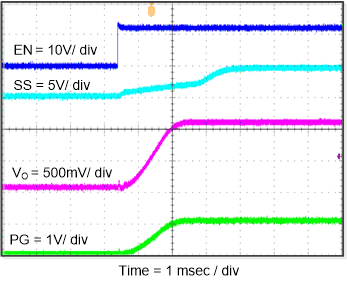

The TPS562219AEVM-663 start-up waveform relative to enable (EN) is shown in Figure 4-10. Load = 1 Ω resistive.

GUID-DF676356-6028-4E0F-9038-35345C8496DE-low.gifFigure 4-10 TPS562219AEVM-663 Start-Up Relative to EN
