4.3 Efficiency

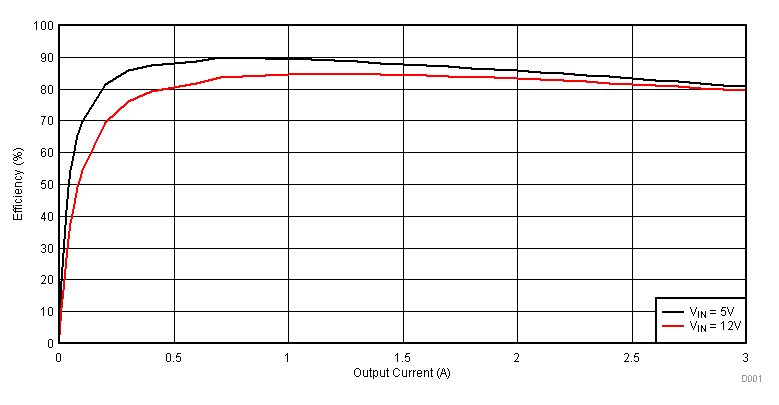

Figure 4-1 shows the efficiency for the TPS563219AEVM-663 at an ambient temperature of 25°C.

GUID-4ABC3BFD-B33F-4AB0-894D-D6C0ABF0DD8C-low.gifFigure 4-1 TPS563219AEVM-663 Efficiency

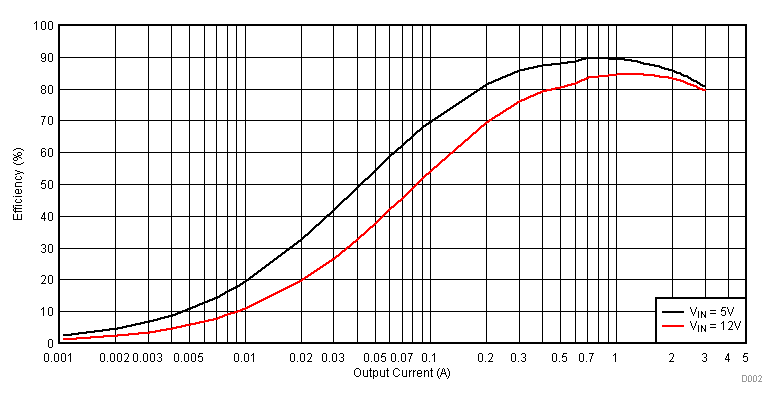

Figure 4-2 shows the efficiency at light loads for the TPS563219AEVM-663 at an ambient temperature of 25°C.

GUID-72A3D33B-8090-4319-9F3B-BCFF6A44E752-low.gifFigure 4-2 TPS563219AEVM-663 Light Load Efficiency
