Output Voltage Ripple

Figure 3-16 through Figure 3-19 show the TPS543620EVM output voltage ripple. The load currents are no load and 6 A. VIN = 12 V. The VOUT voltage is measured using TP10 for U1 and TP29 for U2.

GUID-2C0C384D-FFB4-4DD8-9C34-85CFFFDBA6B1-low.gifFigure 3-16 U1 Output Ripple – No Load
GUID-86D9AA66-BE90-4C31-81C4-AC052AC28241-low.gifFigure 3-18 U2 Output Ripple – No Load
GUID-967AB637-F952-4528-B7B8-3CF42890A088-low.gifFigure 3-17 U1 Output Ripple – 6-A Load

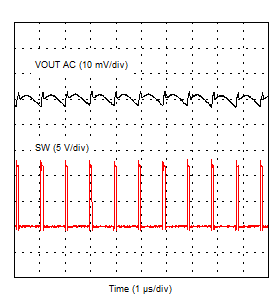

GUID-8EC4AE7F-02F1-4EAF-BC33-423F5B96D6CC-low.gifFigure 3-19 U2 Output Ripple – 6-A Load
