5.2 Efficiency

This section presents efficiency data for several conditions. Unless stated otherwise, all measurements were taken at an ambient temperature of 25°C.

VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-1 Efficiency, VOUT = 0.6 V to 5.0 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM vs. DCM

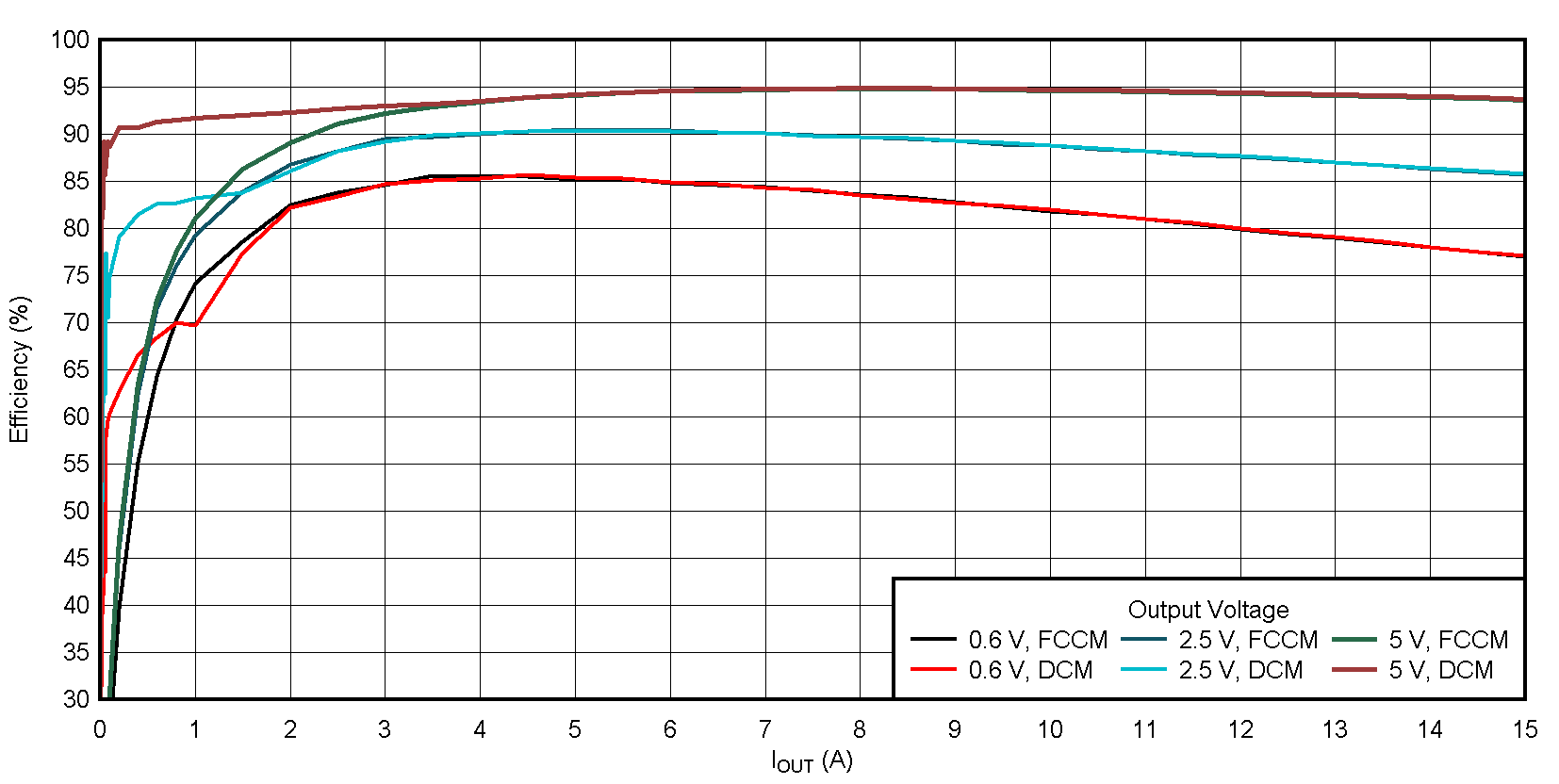

Figure 5-3 Efficiency, VOUT = 0.6 V, 2.5 V, and 5 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-5 Efficiency, VOUT = 0.8 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM

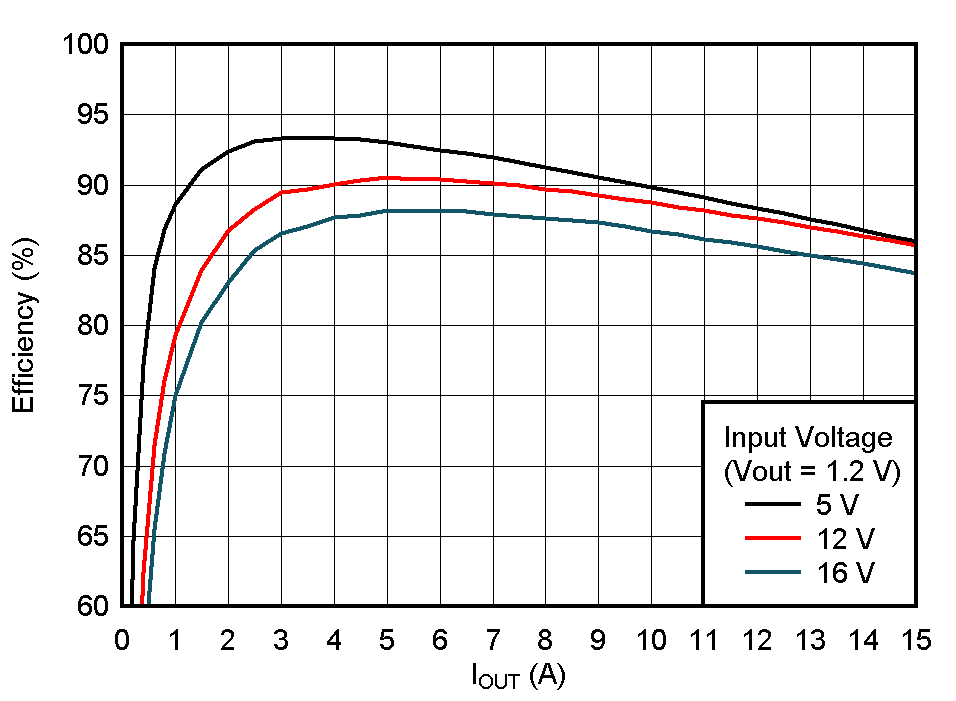

Figure 5-7 Efficiency, VOUT = 1.2 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-9 Efficiency, VOUT = 2.5 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-11 Efficiency, VOUT = 5.0 V
VIN = 12 V fsw = 600 kHz Int. vs. ext. 5 V bias FCCM
Figure 5-2 Efficiency, VOUT = 0.6 V and 2.5 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-4 Efficiency, VOUT = 0.6 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM

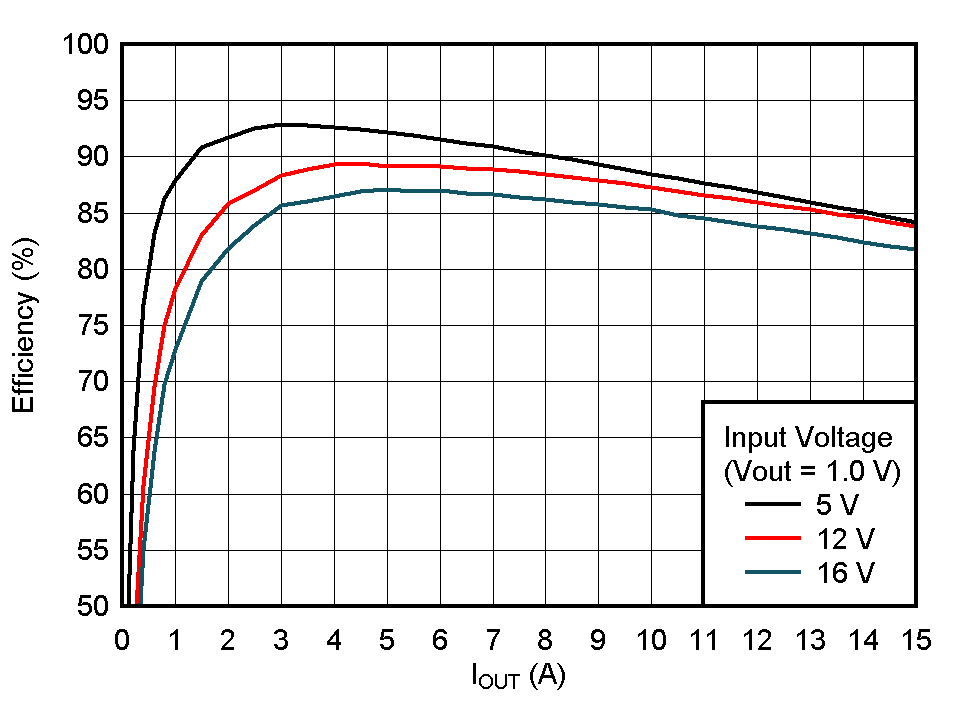

Figure 5-6 Efficiency, VOUT = 1.0 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM
Figure 5-8 Efficiency, VOUT = 1.8 V
VIN = 12 V fsw = 600 kHz Internal bias FCCM

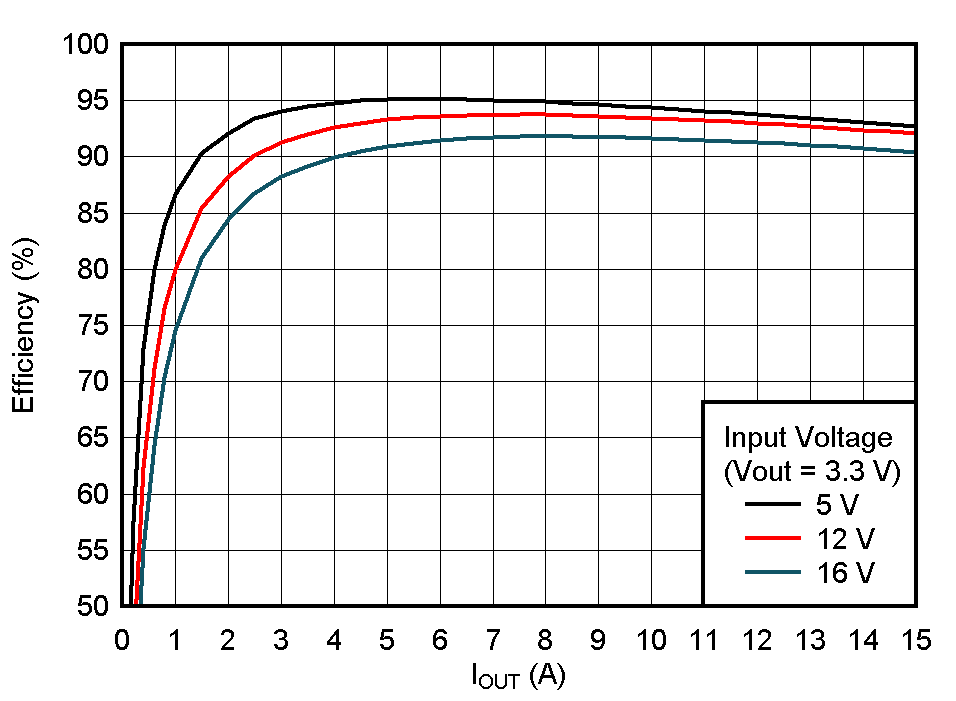

Figure 5-10 Efficiency, VOUT = 3.3 V
