6.3.4 ESM_SOC_ERROR

In the event of an ESM_SOC error, the nRSTOUT_SOC signal is driven low and then driven high again after 200 µs. There is no change to the power rails. The sequence is shown in Figure 6-5.

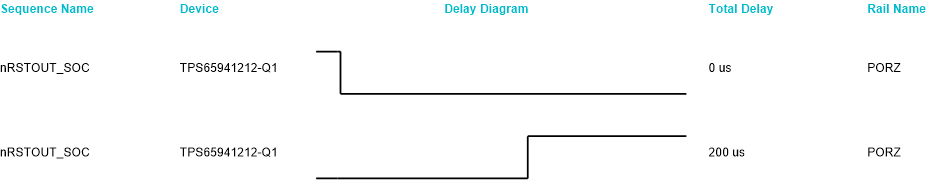

GUID-20210215-CA0I-TJ7M-VJZQ-M5RXRFLBFM5Z-low.gif Figure 6-5 ESM_SOC_ERROR Sequence
