Test Results

Figure 3-1 through Figure 3-4 demonstrate the performance of the TLVM13630EVM operating at 24-V input and 5-V output.

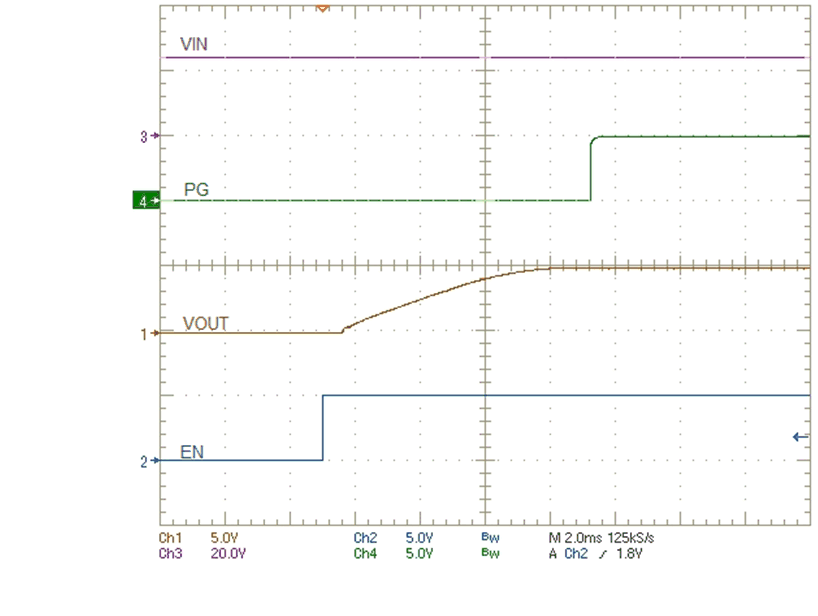

GUID-20210317-CA0I-V7CZ-WQCH-55GRFZTPB068-low.gifFigure 3-1 ENABLE Start-Up Waveform

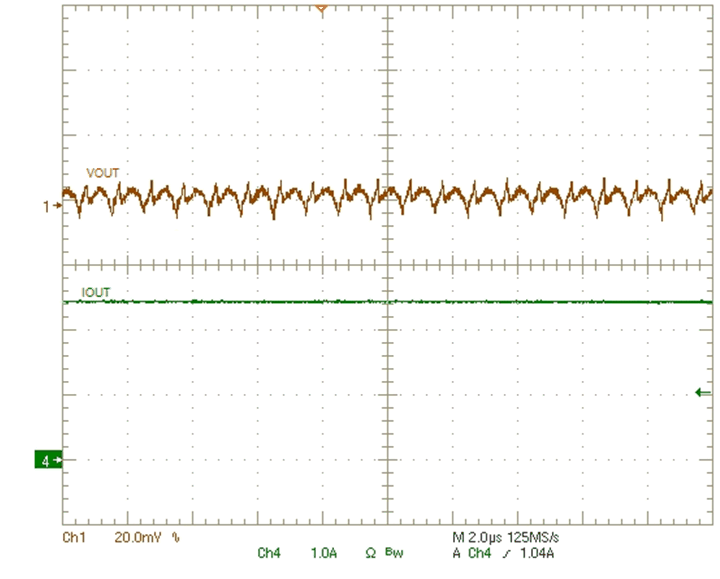

GUID-20210317-CA0I-8BQT-DXBV-MNRGNQW3SDJS-low.gifFigure 3-3 Output Voltage Ripple
GUID-20210317-CA0I-XNGK-LPQP-T91FR8VRKDTH-low.gifFigure 3-2 ENABLE Shutdown Waveform

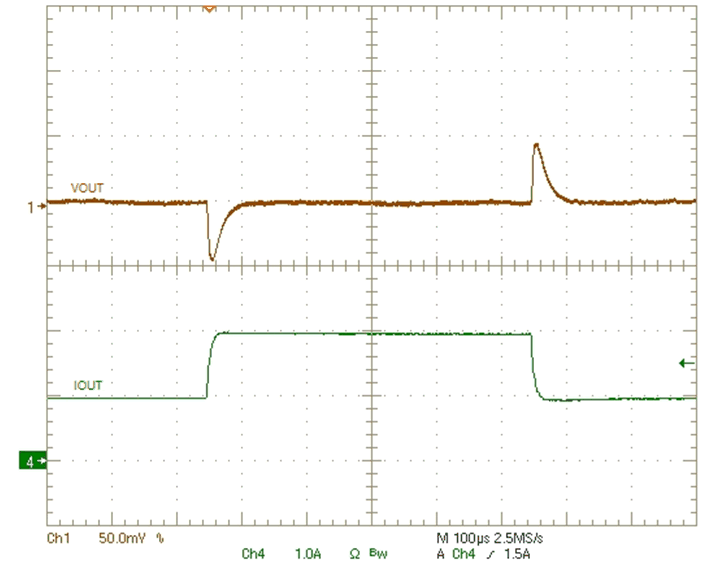

GUID-20210317-CA0I-ZVLJ-3JNL-VHFLT7MQSPJJ-low.gifFigure 3-4 Transient Performance
