9.2.3 Application Curve

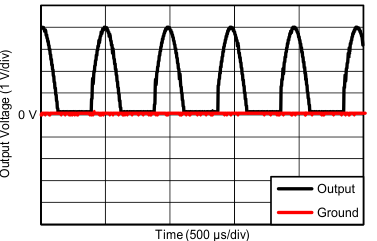

Figure 9-4 shows an example output response of a unidirectional configuration. The device output swing is limited by ground; therefore, the output is biased to this zero output level. The output rises above ground for positive differential input signals, but cannot fall below ground for negative differential input signals.

GUID-20E1569C-24EF-45C0-BDCE-412D0F5D3F50-low.gifFigure 9-4 Output Response
