9.2.2.3 Application Curves

The following characteristics apply only to the circuit shown in Figure 9-12. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.
The following characteristics apply only to the circuit shown in Figure 9-12. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.GUID-87E1B486-EDFC-47FF-BC62-D3976B882E77-low.gif
Device Type = 1 A Mode = FPWM 3.3-V Fixed Output
Figure 9-13 Efficiency. The following characteristics apply only to the circuit shown in Figure 9-12. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.
Device Type = 1 A 3.3-V Fixed Output
Figure 9-15 Load Regulation
Device Type = 1 A 3.3-V Fixed Output
92-mΩ Inductor Frequency Drops to 1.85 MHz

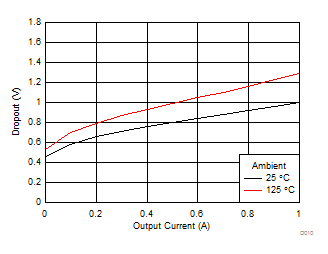

Figure 9-17 Entry into Dropout
Device Type = 1 A Mode = Auto 3.3-V Fixed Output
Figure 9-14 Efficiency
Device Type = 1 A Output = 3.2 V 92-mΩ Inductor
3.3-V Fixed Output

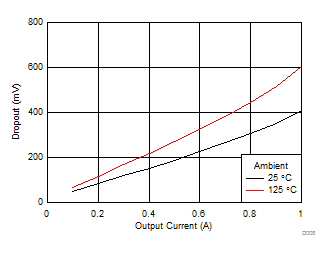

Figure 9-16 Dropout Voltage
Device Type = 1 A Spread Spectrum
3.3-V Fixed Output Load = 500 mA
Figure 9-18 Frequency vs. Input Voltage
