9.2.1.3 Application Curves

The following characteristics apply only to the circuit shown in Figure 9-3. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.
The following characteristics apply only to the circuit shown in Figure 9-3. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.GUID-09C4C11A-623C-42F5-81D9-878E46E14654-low.gif
Device type = 1 AMode = High5-V Fixed Output
Figure 9-4 Efficiency. The following characteristics apply only to the circuit shown in Figure 9-3. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 13.5 V, TA = 25°C.

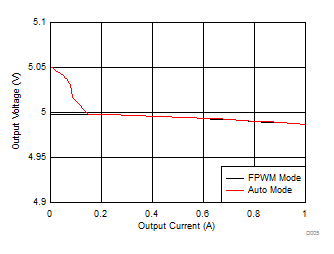

Device Type = 1 A 5-V Fixed Output
Figure 9-6 Load Regulation
Device Type = 1 A 5-V Fixed Output 92-mΩ inductor
Frequency drops to 1.85MHz
Figure 9-8 Entry into Dropout

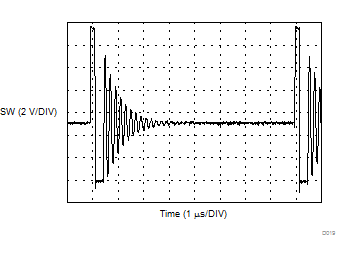

Device Type = 1 A Load = 10 mA Mode = Auto
5-V Fixed Output
Figure 9-10 SW Node Operation
Device Type = 1 AMode = Auto5-V Fixed Output
Figure 9-5 Efficiency

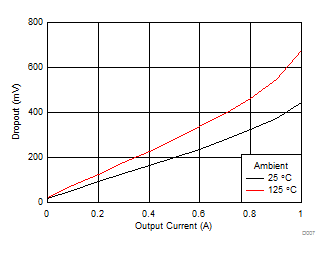

Device Type = 1 A 5-V Fixed Output Output = 4.85 V
92-mΩ Inductor
Figure 9-7 Dropout Voltage
Device Type = 1 A 5-V Fixed Output Spread Spectrum
Load = 500 mA
Figure 9-9 Frequency vs. Input Voltage
Device Type = 1 A Mode = Auto Load = 500 mA
5-V Fixed Output
Figure 9-11 SW Node Operation
