6.1 Typical Characteristics

LMK00804B-Q1 D001.gif
Figure 1. Propagation Delay vs. Temperature and Supply Voltage

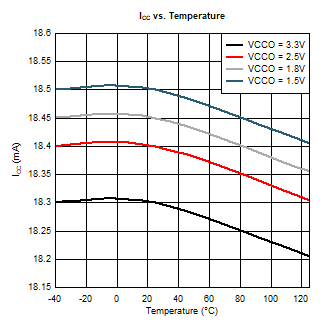

LMK00804B-Q1 D003.gif
Figure 3. ICC vs. Temperature and Supply Voltage

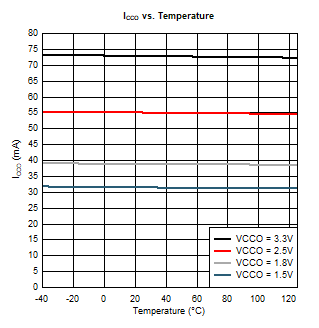

LMK00804B-Q1 D002.gif
Figure 2. ICCO vs. Temperature and Supply Voltage

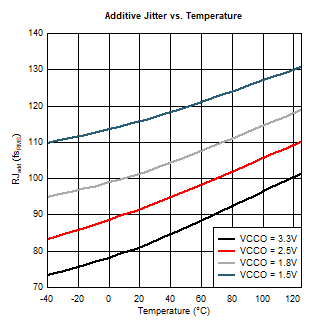

LMK00804B-Q1 D004.gif
Figure 4. Additive Jitter vs. Temperature and Supply Voltage
