6.4 System Examples

The DS90UB934-Q1 has two input ports that operate as a multiplexer controlled by the SEL pin. A single camera can be connected to either Rx input port 0 or Rx input port 1 (Figure 6-9).

Two cameras can be connected simultaneously, but only one is active at a time (Figure 6-10). The SEL pin can be toggled on-the-fly to select which camera is forwarded to the DVP output.

GUID-85C0515D-31E5-499D-88CF-12C9DD3C6EC2-low.gifFigure 6-9 DS90UB933-Q1 Camera Data to 1 Rx Port

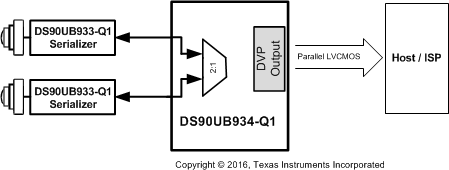

GUID-76AA87F7-BDAF-4456-80D6-78E4C0CF9470-low.gifFigure 6-10 Two DS90UB933-Q1 Camera Data to 2 Rx Ports
