3 Description

The DSLVDS1001 device is a single-channel, Low-Voltage Differential Signaling (LVDS) driver device designed for applications requiring low power dissipation, low noise, and high data rates. In addition, the short-circuit fault current is also minimized. The device is designed to support data rates that are up to 400-Mbps (200-MHz) using LVDS technology.

The DSLVDS1001 accepts a 3.3-V LVCMOS/LVTTL input level and outputs low voltage (±350-mV typical) differential signals that have low electromagnetic interference (EMI). The device is in a 5-pin SOT-23 package that is designed for easy PCB layout. The DSLVDS1001 can be paired with its companion single line receiver, the DSLVDS1002, or with any LVDS receiver, to provide a high-speed LVDS interface.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
DSLVDS1001 SOT-23 (5) 2.90 mm × 1.60 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Functional Diagram

DSLVDS1001 Block-Diagram.gif

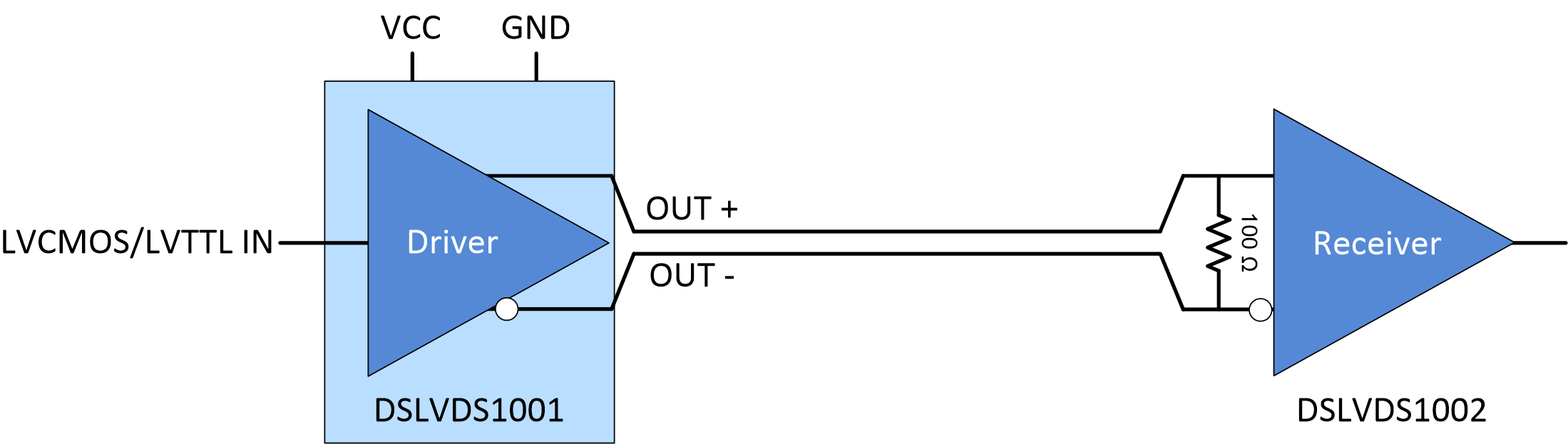

Typical Application

DSLVDS1001 Typical-Application.gif
