9.2.3.3 Application Curves

The following characteristics apply only to the circuit of Figure 9-18. These parameters are not tested and represent typical performance only. Unless otherwise stated, the following conditions apply: VIN = 12 V, TA = 25°C. For the purpose of offering the more information to the designer, information for the application with FPWM pin high (FPWM mode) and FPWM pin low (AUTO mode) is included, although the schematic shows the application running specifically in AUTO mode. The mode is specified under each of the following graphs.

VOUT = 3.3 V AUTO
Figure 9-19 Efficiency
VOUT = 3.3 V FPWM
Figure 9-21 Efficiency
VOUT = 3.3 V AUTO IOUT = 0A

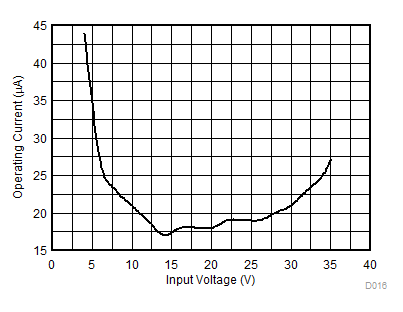

Figure 9-23 Input Supply Current (Includes Leakage Current of Capacitor)
VOUT = 3.3 V
Figure 9-25 Dropout for –3% Regulation
VOUT = 3.3 V AUTO
Figure 9-27 Switching Frequency vs Load Current
VOUT = 3.3 V L=2.2 µH IOUT = 1 A
Figure 9-29 Output Current Level for Overcurrent Protection Trip
FPWM VOUT = 3.3 V L = 2.2 µH,
COUT = 3 × 22 µF IOUT = 0 A to 3.5 A TR = TF = 1 µs
Figure 9-31 Load Transient
VOUT = 3.3 V IOUT = 10 mA
Figure 9-33 Mode Change Transient FPWM to AUTO Mode
VOUT = 3.3 V AUTO
Figure 9-20 Load and Line Regulation
VOUT = 3.3 V FPWM
Figure 9-22 Load and Line Regulation
VOUT = 3.3 V
Figure 9-24 Load Current for PFM-to-PWM Transition
VOUT = 3.3 V
Figure 9-26 Dropout for ≥ 1.85 MHz
VOUT = 3.3 V FPWM IOUT = 1 A
Figure 9-28 Switching Frequency vs Input Voltage
AUTO VOUT = 3.3 V L = 2.2 µH,
COUT = 3 × 22 µF IOUT = 0 A to 3.5 A TR = TF = 1 µs
Figure 9-30 Load Transient
VOUT = 3.3 V IOUT = 10 mA
Figure 9-32 Mode Change Transient AUTO to FPWM mode
