9.2 Typical Application

Figure 18 showsa typical application circuit for the LMR36006. This device is designed to function over a wide range of external components and system parameters. However, the internal compensation is optimized for a certain range of external inductance and output capacitance. As a quick start guide, Table 1 provides typical component values for a range of the most common output voltages.

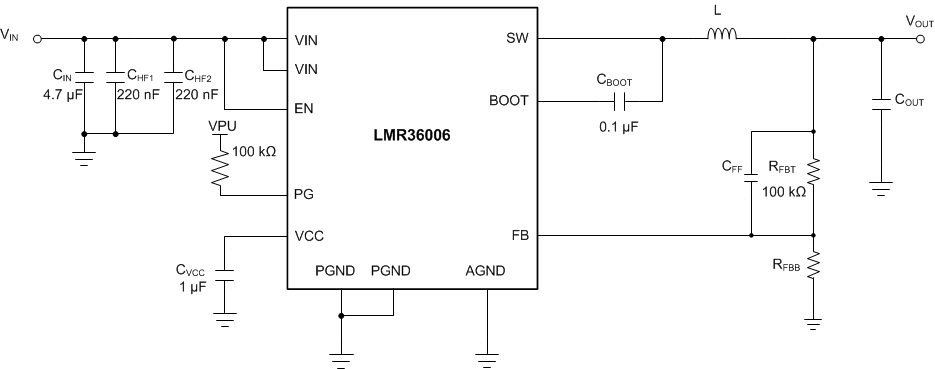

LMR36006 general_apps_circuit_06-ADJ-output.gifFigure 18. Example Applications Circuit

Table 1. Typical External Component Values

ƒSW (kHz) VOUT (V) L (µH) Nominal COUT (rated capacitance) (1) Minimum COUT (rated capacitance) (2) RFBT (Ω) RFBB (Ω) CIN CFF
1000 3.3 10 2 × 15 µF 1 × 15 µF 100 k 43.2 k 4.7 µF + 2 × 220 nF 20 pF
2100 3.3 6.8 2 × 15 µF 1 × 15 µF 100 k 43.2 k 4.7 µF + 2 × 220 nF 20 pF
1000 5 15 2 × 15 µF 1 × 15 µF 100 k 24.9 k 4.7 µF + 2 × 220 nF 20 pF
2100 5 10 2 × 15 µF 1 × 15 µF 100 k 24.9 k 4.7 µF + 2 × 220 nF 20 pF
1000 12 33 2 × 15 µF 1 × 15µF 100 k 9.09 k 4.7 µF + 2 × 220 nF 20 pF
2100 12 22 2 × 15 µF 1 × 15 µF 100 k 9.09 k 4.7 µF + 2 × 220 nF 20 pF
(1) Optimized for superior load transient performance from 0 to 100% rated load.
(2) Optimized for size constrained end applications.
