Application Curves

VOUT = 3.3 V FSW = 400 kHz Auto Mode

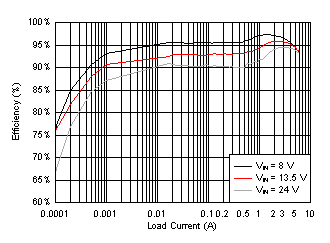

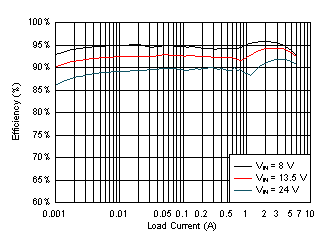

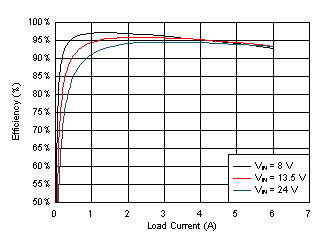

Figure 10-5 LM61460-Q1 Efficiency
VOUT = 3.3 V FSW = 2100 kHz AUTO Mode

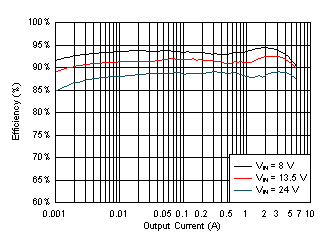

Figure 10-7 LM61460-Q1 Efficiency
VOUT = 5 V FSW = 400 kHz AUTO Mode

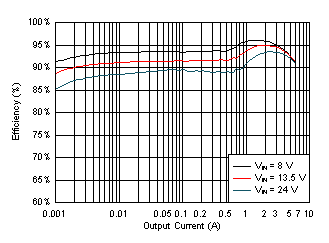

Figure 10-9 LM61460-Q1 Efficiency
VOUT = 5 V FSW = 2100 kHz AUTO Mode
Figure 10-11 LM61460-Q1 Efficiency
VOUT = 3.3 V FSW = 400 kHz Auto Mode

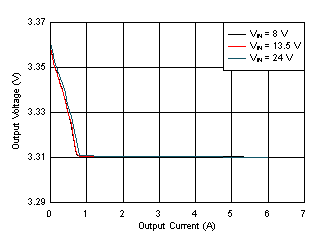

Figure 10-13 LM61460-Q1 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz AUTO Mode
Figure 10-15 LM61460-Q1 Load and Line Regulation
VOUT = 5 V FSW = 400 kHz AUTO Mode

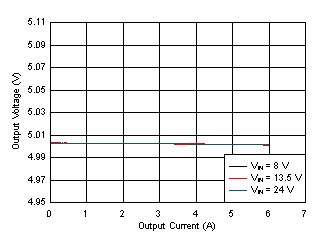

Figure 10-17 LM61460-Q1 Load and Line Regulation
VOUT = 5 V FSW = 2100 kHz AUTO Mode
Figure 10-19 LM61460-Q1 Load and Line Regulation
VOUT = 3.3 V FSW = 400 kHz AUTO Mode
Figure 10-21 LM61460-Q1 Dropout Curve
VOUT = 5 V FSW = 400 kHz AUTO Mode
Figure 10-23 Dropout Curve
VOUT = 3.3 V FSW = 400 kHz AUTO Mode

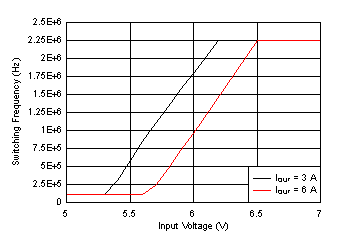

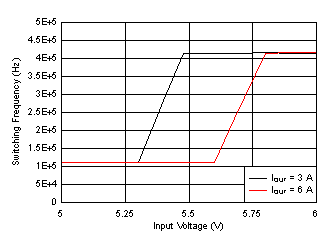

Figure 10-25 LM61460-Q1 Frequency Dropout
VOUT = 5 V FSW = 400 kHz AUTO Mode
Figure 10-27 LM61460-Q1 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz AUTO Mode
IOUT = 50 mA VIN = 13.5 V

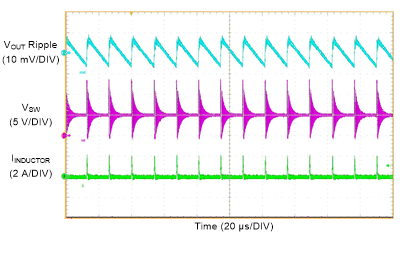

Figure 10-29 LM61460-Q1 Switching Waveform and VOUT Ripple
VOUT = 5 V FSW = 2100 kHz AUTO Mode
IOUT = 50 mA VIN = 13.5 V

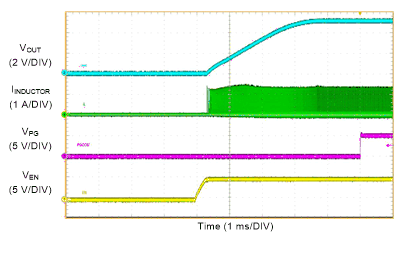

Figure 10-31 LM61460-Q1 Start-up with 50-mA Load

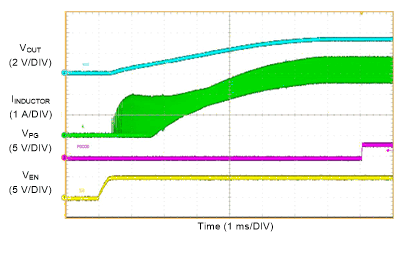

VOUT = 3.3 V FSW = 2100 kHz FPWM Mode
IOUT = 3.25 A VIN = 13.5 V
Figure 10-33 LM61460-Q1 Start-up with 3.25-A
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = Short Circuit to 5 A VIN = 13.5 V
Figure 10-35 LM61460-Q1 Short Circuit Recovery
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = 4 A VIN = 13.5 V to 4 V to 13.5 V
Figure 10-37 Graceful Recovery from Dropout
VOUT = 5 V FSW = 400 kHz FPWM Mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs

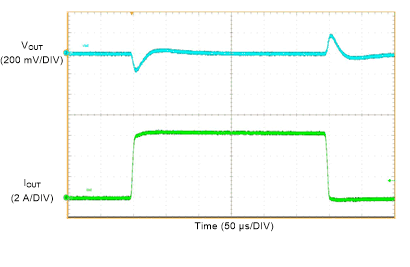

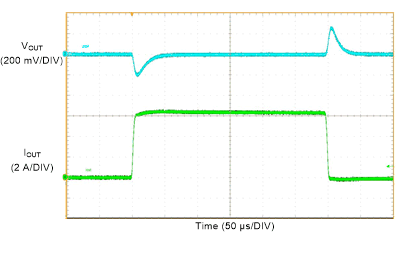

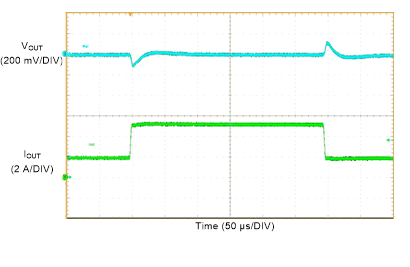

Figure 10-39 LM61460-Q1 Load Transient
VOUT = 5 V FSW = 400 kHz AUTO Mode
IOUT = 50 mA to 6 A to 50 mA VIN = 13.5 V TR = TF = 6 µs

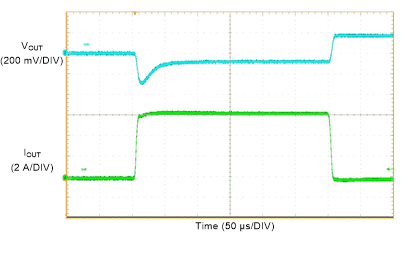

Figure 10-41 LM61460-Q1 Load Transient
VOUT = 3.3 V FSW = 400 kHz AUTO Mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2 µs
Figure 10-43 LM61460-Q1 Load Transient
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 10-45 LM61460-Q1 Load Transient
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz

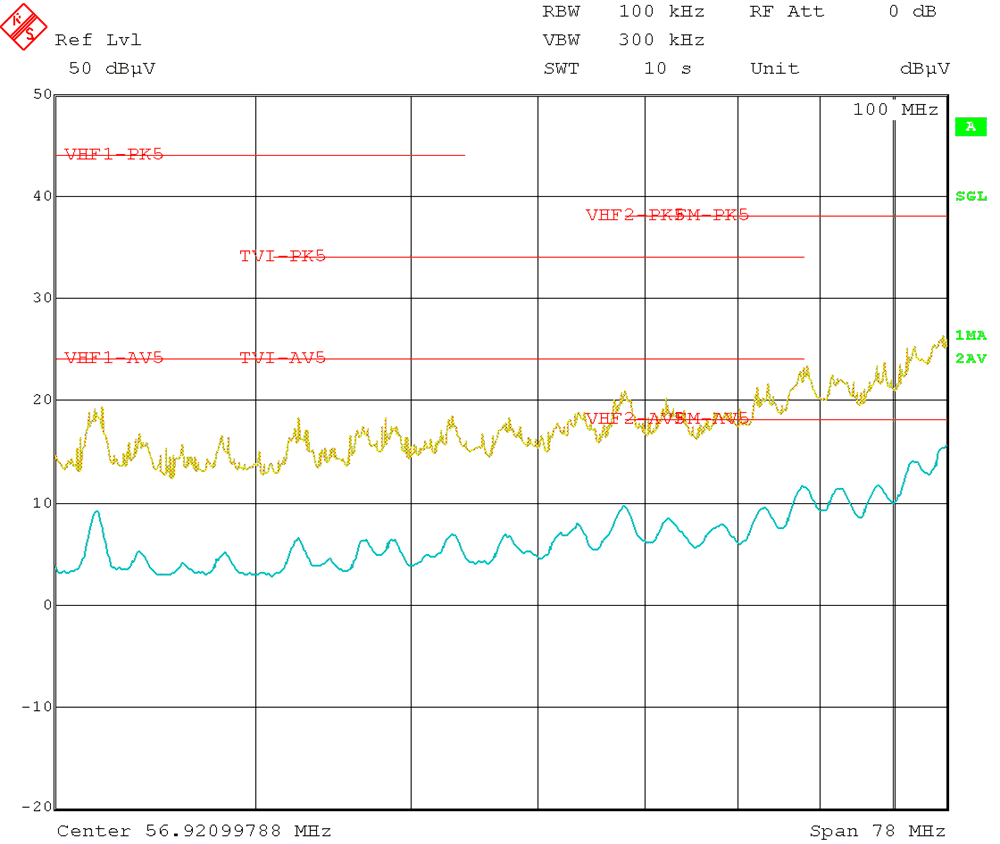

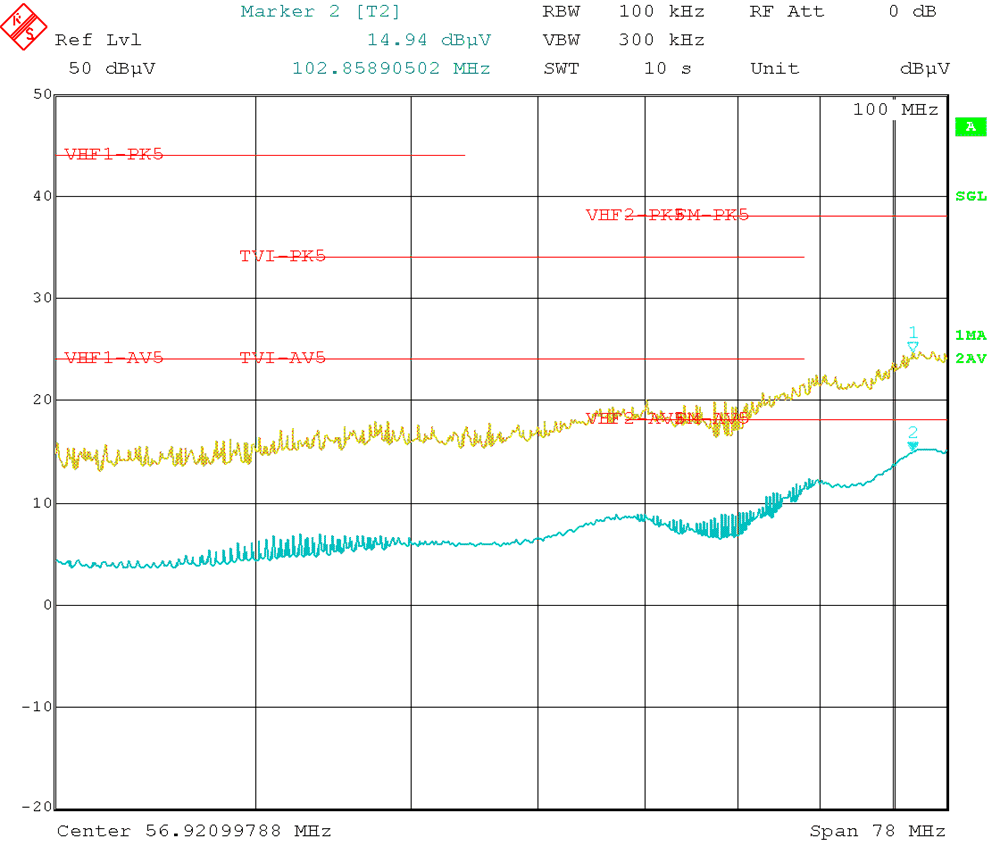

Figure 10-47 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-49 Radiated EMI Bicon Vertical versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz

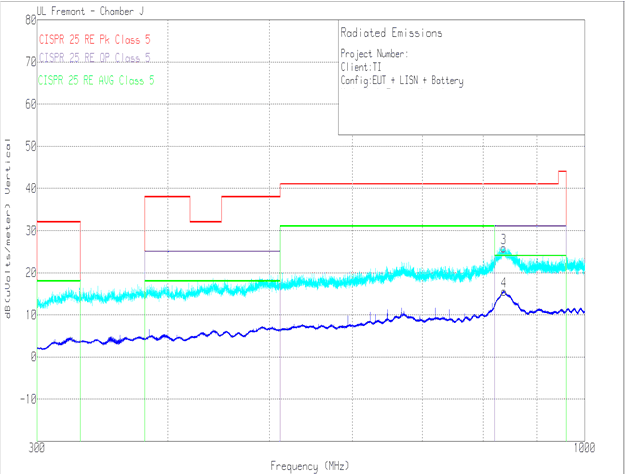

Figure 10-51 Radiated EMI Log Vertical versus CISPR25 Limits




FSW = 400 kHz Note: Measurements taken with LM61460EVM
Figure 10-53 Recommended Input EMI Filter
FSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 10-55 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 3.3 V FSW = 400 kHz FPWM Mode

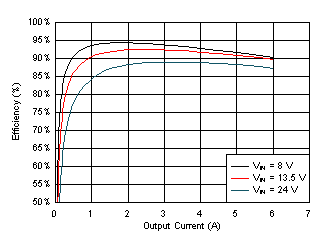

Figure 10-6 LM61460-Q1 Efficiency
VOUT = 3.3 V FSW = 2100 kHz FPWM Mode
Figure 10-8 LM61460-Q1 Efficiency
VOUT = 5 V FSW = 400 kHz FPWM Mode

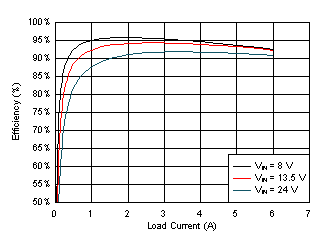

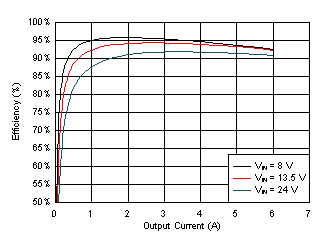

Figure 10-10 LM61460-Q1 Efficiency
VOUT = 5 V FSW = 2100 kHz FPWM Mode
Figure 10-12 LM61460-Q1 Efficiency
VOUT = 3.3 V FSW = 400 kHz FPWM Mode
Figure 10-14 LM61460-Q1 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz FPWM Mode
Figure 10-16 LM61460-Q1 Load and Line Regulation
VOUT = 5 V FSW = 400 kHz FPWM Mode

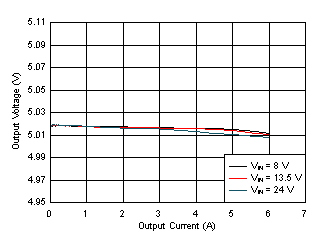

Figure 10-18 LM61460-Q1 Load and Line Regulation
VOUT = 5 V FSW = 2100 kHz FPWM Mode
Figure 10-20 LM61460-Q1 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz AUTO Mode
Figure 10-22 LM61460-Q1 Dropout Curve
VOUT = 5 V FSW = 2100 kHz AUTO Mode
Figure 10-24 LM61460-Q1 Dropout Curve
VOUT = 3.3 V FSW = 2100 kHz AUTO Mode
Figure 10-26 LM61460-Q1 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz AUTO Mode
Figure 10-28 LM61460-Q1 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = 50 mA VIN = 13.5 V
Figure 10-30 LM61460-Q1 Switching Waveform and VOUT Ripple
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = 50 mA VIN = 13.5 V
Figure 10-32 LM61460-Q1 Start-up with 50-mA
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = 5 A to Short Circuit VIN = 13.5 V
Figure 10-34 LM61460-Q1 Short Circuit Protection
VOUT = 5 V FSW = 2100 kHz FPWM Mode
IOUT = Short Circuit VIN = 13.5 V
Figure 10-36 LM61460-Q1 Short Circuit Performance
VOUT = 5 V FSW = 400 kHz AUTO Mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 10-38 LM61460-Q1 Load Transient
VOUT = 5 V FSW = 400 kHz AUTO Mode
IOUT = 2 A to 5 A to 2 A VIN = 13.5 V TR = TF = 3 µs

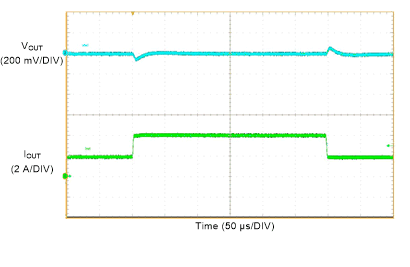

Figure 10-40 LM61460-Q1 Load Transient
VOUT = 3.3 V FSW = 400 kHz AUTO Mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 10-42 LM61460-Q1 Load Transient
VOUT = 5 V FSW = 2100 kHz AUTO Mode
IOUT = 0 A to 6 A to 0 A VIN = 13.5 V TR = TF = 6 µs
Figure 10-44 LM61460-Q1 Load Transient
FSW = 400 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 10-46 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz

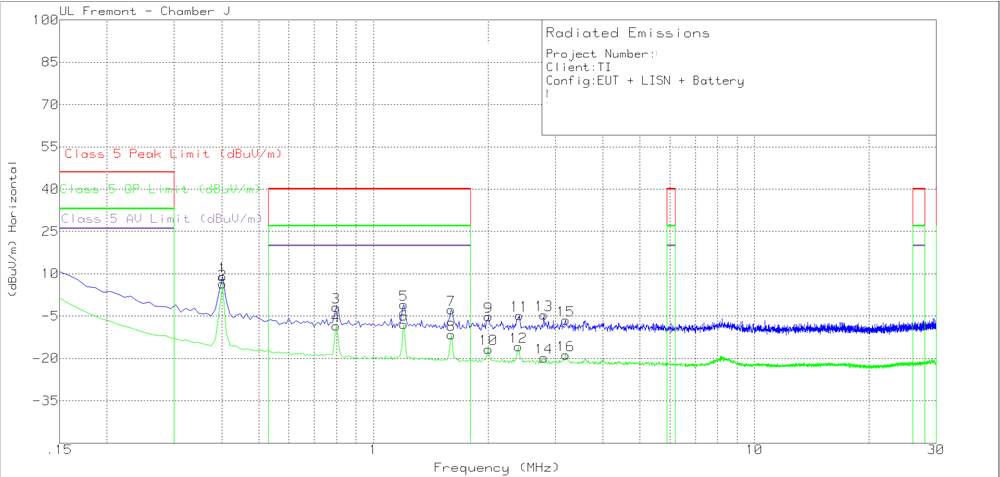

Figure 10-48 Radiated EMI Rod versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-50 Radiated EMI Bicon Horizontal versus CISPR25 Limits
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz

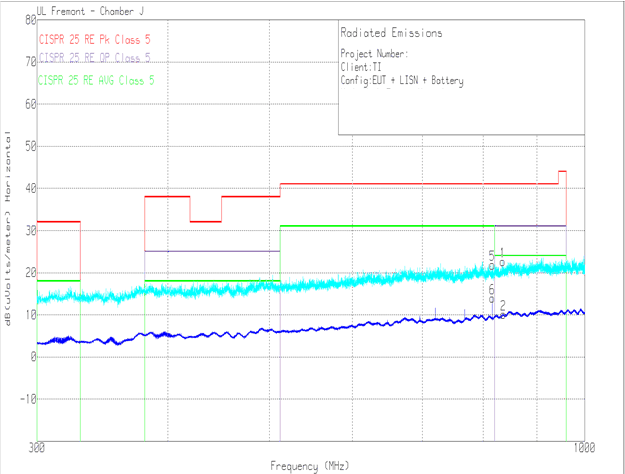

Figure 10-52 Radiated EMI Log Horizontal versus CISPR25 Limits
FSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz

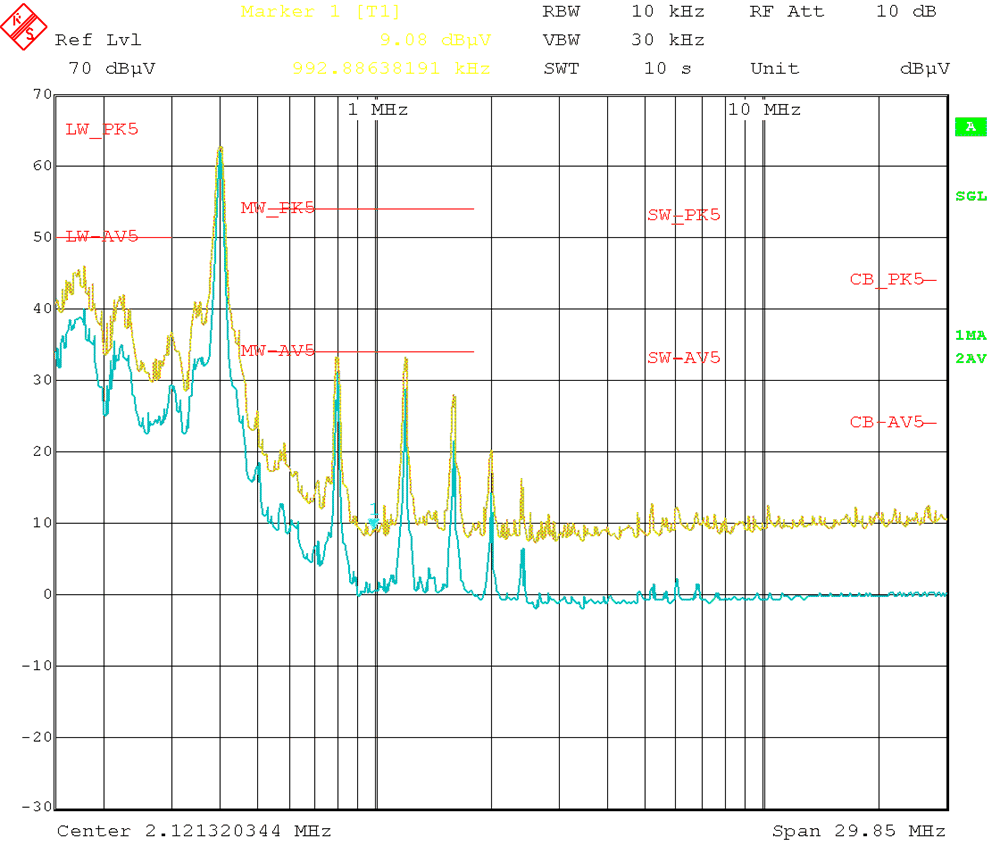

Figure 10-54 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)





FSW = 2100 kHz
Figure 10-56 Recommended Input EMI Filter
Table 10-5 BOM for Typical Application Curves
VOUT FREQUENCY RFBB RT COUT CIN + CHF L CFF
3.3 V 400 kHz 43.2 kΩ 33.2 kΩ 6 x 22 µF 2 x 4.7 µF + 2 x 100 nF 4.7 µH (XHMI6060) 22 pF
3.3 V 2100 kHz 43.2 kΩ 6.04 kΩ 3 x 22 µF 2 x 4.7 µF + 2 x 100 nF 1 µH (XEL5030) 22 pF
5 V 400 kHz 24.9 kΩ 33.2 kΩ 4 x 22 µF 2 x 4.7 µF + 2 x 100 nF 4.7 µH (XHMI6060) 22 pF
5 V 2100 kHz 24.9 kΩ 6.04 kΩ 3 x 22 µF 2 x 4.7 µF + 2 x 100 nF 1 µH (XEL5030) 22 pF
