9.3.6 Current Sense and Slope Compensation (CS Pin)

The device has a low-side current sense and provides both fixed and optional programmable slope compensation ramps, which help to prevent subharmonic oscillation at high duty cycle. Both fixed and programmable slope compensation ramps are added to the sensed inductor current input for the PWM operation, but only the programmable slope compensation ramp is added to the sensed inductor current input (see Figure 9-17). For an accurate peak current limit operation over the input supply voltage, TI recommends using only the fixed slope compensation (see Figure 8-5).

The device can generate the programmable slope compensation ramp using an external slope resistor (RSL) and a sawtooth current source with a slope of 30 μA × fRT. This current flows out of the CS pin.

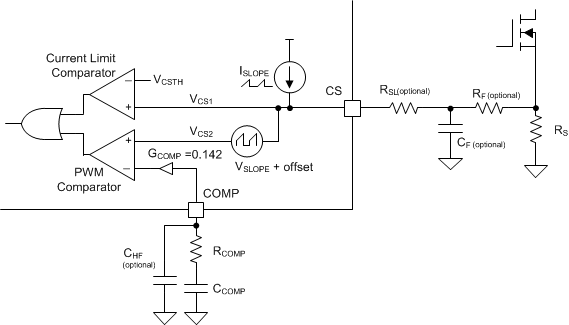

GUID-B29BB6CF-690E-458F-948E-2D6E541F778E-low.gifFigure 9-17 Current Sensing and Slope Compensation
GUID-C7EEF984-72F5-40D9-8B04-5B4496002E70-low.gifFigure 9-18 Slope Compensation Ramp (a) at PWM Comparator Input
GUID-85030889-5414-4EA6-B1B5-1BEB51A44344-low.gifFigure 9-19 Slope Compensation Ramp (b) at Current Limit Comparator Input

Use Equation 6 to calculate the value of the peak slope current (ISLOPE) and use Equation 7 to calculate the value of the peak slope voltage (VSLOPE).

Equation 6. GUID-DFEDAEA5-1B76-4EAB-A45B-B7EC28681AAF-low.gif
Equation 7. GUID-2118EE0D-F38A-44C1-B57D-16F0441B151D-low.gif

where

  • fSYNC = fRT if clock synchronization is not used.

According to peak current mode control theory, the slope of the compensation ramp must be greater than half of the sensed inductor current falling slope to prevent subharmonic oscillation at high duty cycle. Therefore, the minimum amount of slope compensation in boost topology should satisfy the following inequality:

Equation 8. GUID-41E2F4A7-1971-4A7D-97E7-A87B5E3CEDD6-low.gif

where

  • VF is a forward voltage drop of D1, the external diode.

The recommended value for margin to cover non-ideal factors is 1.2. If required, RSL can be added to further increase the slope of the compensation ramp. Typically 82% of the sensed inductor current falling slope is known as an optimal amount of the slope compensation. The RSL value to achieve 82% of the sensed inductor current falling slope is calculated as shown in Equation 9.

Equation 9. GUID-3185B107-9C8D-4D93-9450-2AC408C556B0-low.gif

If clock synchronization is not used, the fSW frequency equals the fRT frequency. If clock synchronization is used, the fSW frequency equals the fSYNC frequency. The maximum value for the RSL resistance is 2 kΩ.
