4.4 Steady State Waveforms

GUID-1E9265CA-CDA5-4F30-BEBB-718B08DF460E-low.gifFigure 4-4 Steady State, VSUPPLY = 18V, ILOAD = 4A
GUID-E1B8A8C5-449E-4149-9415-790F85A6283F-low.gifFigure 4-5 Steady State, VSUPPLY = 24V, ILOAD = 4A

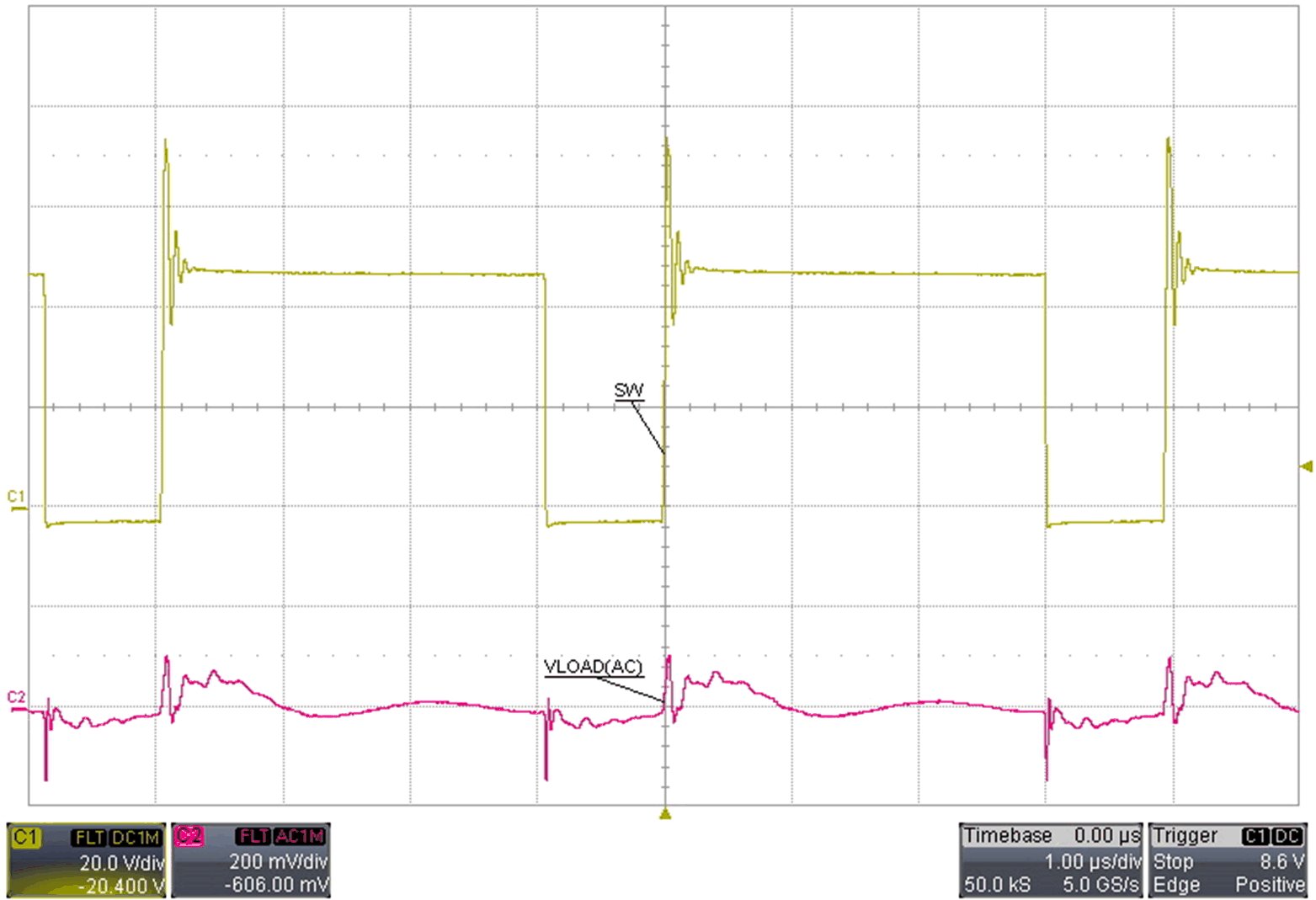

GUID-5E1C3E24-E752-4CF2-818A-3F6A262FAC56-low.gifFigure 4-6 Steady State, VSUPPLY = 36V, ILOAD = 4A
