4.3 Thermal Performance

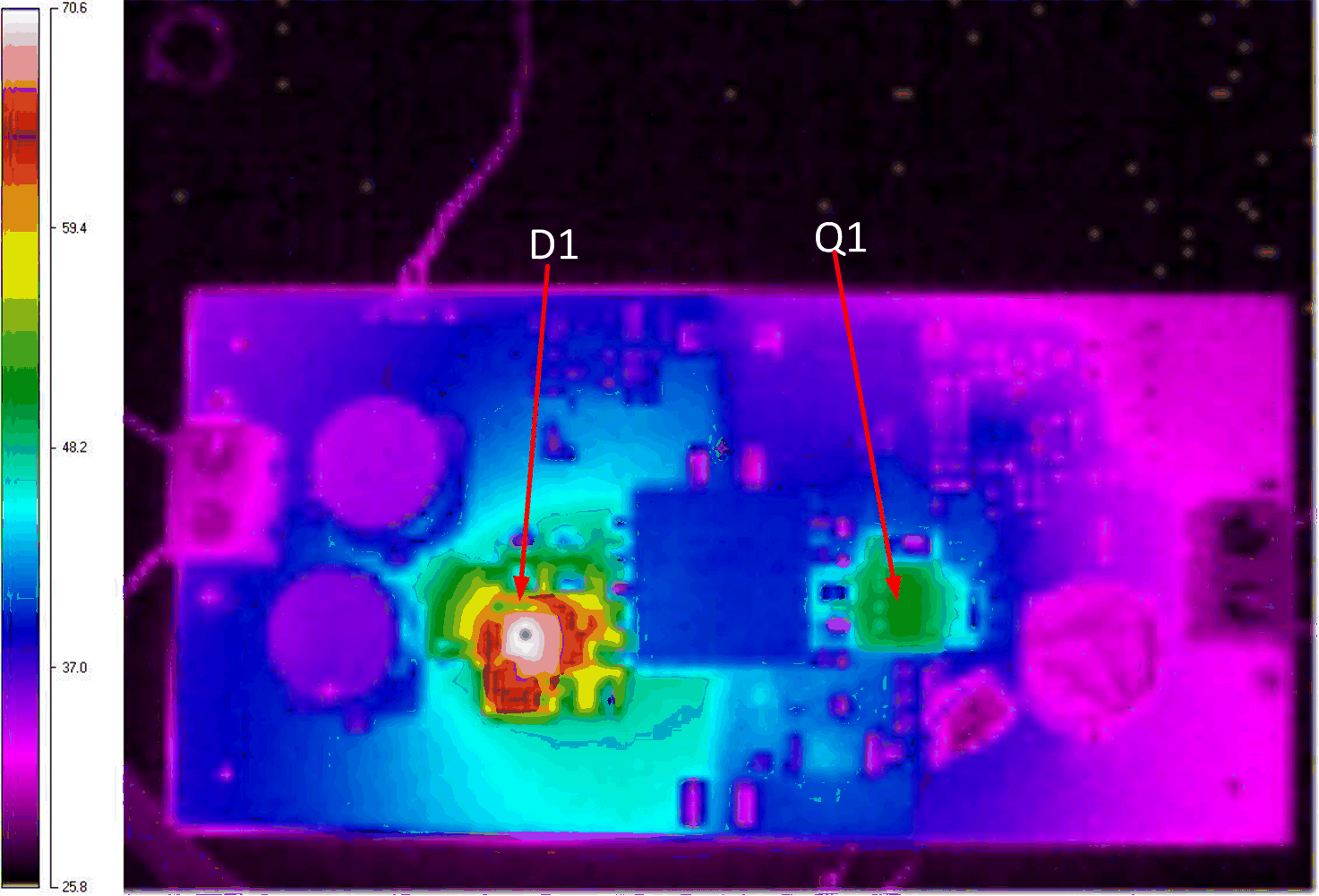

GUID-4C9232AE-BE64-4471-A20B-116846CBC80B-low.gifFigure 4-3 Thermal Performance: VSUPPLY = 36V, ILOAD = 4A, No forced air cooling
