4.4 Typical Waveforms

Texas Instruments HVAL068A automotive cranking simulator is used during cranking test.

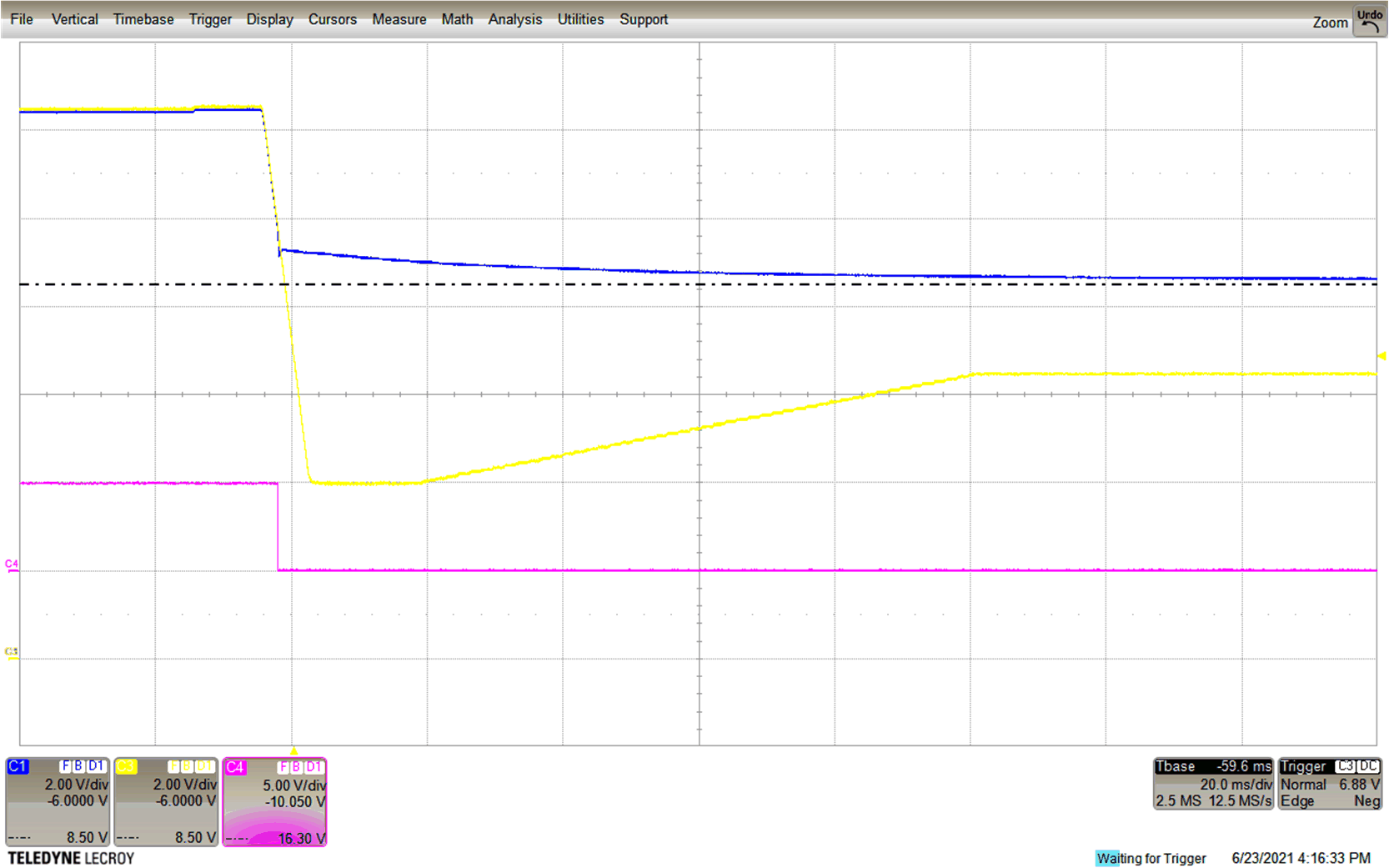

GUID-20210820-SS0I-TWCB-ZBVT-L1QZWD71ST8G-low.gifFigure 4-4 Program 1, DaimlerChrysler Engine-Cranking Test Pulse, DC-10615 (C1: VOUT, C3: VIN, C4: STATUS)
GUID-20210820-SS0I-G1W4-LH26-FZ9ZLKW6DJXN-low.gifFigure 4-6 Program 3, Volkswagen Cold-Start Test Pulse, VW80000 (C1: VOUT, C3: VIN, C4: STATUS)
GUID-20210820-SS0I-P3JG-WBQ5-KXVVVZGG9WMR-low.gifFigure 4-5 Program 2, Volkswagen Warm-Start Test Pulse, VW80000 (C1: VOUT, C3: VIN, C4: STATUS)
GUID-20210820-SS0I-BRTV-NV2S-QRKHSKBKSVCL-low.gifFigure 4-7 Load Transient Test (2 A to 4 A to 2 A at 4-V Input)
