7.1 Simulation and Modeling

All high-performance interfaces, especially those operating above 300 MHz, should always be modeled. Proper simulation and modeling (which must include a complete application board (PCB) stack up, DSP DDR3 interface, and SDRAMs) is important to verify and confirm component placement, selection, and signal integrity. In a high-performance interface, signal stubs, perturbations, non-monotonic waveforms, inflections, and reflections become significant. Time spent properly modeling the DDR3 interface regardless of the topology or condition selected will pay off in the long run.

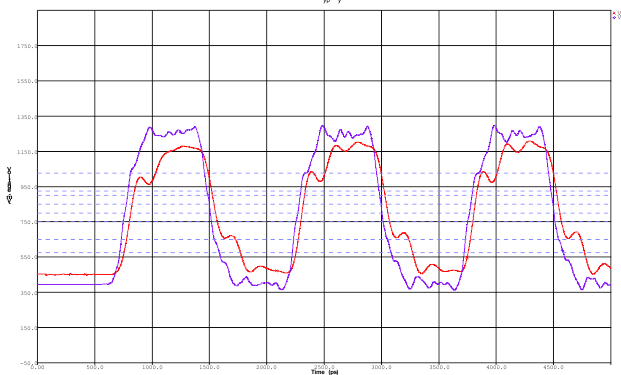

Figure 7-1 shows the impact of proper placement and routing of high speed signals.

GUID-331A9E10-6653-4D3B-932D-EFA6F411F183-low.gif Figure 7-1 DDR3 Simulations
