4.2 PWM Mode

In PWM mode, the C2000 F28379D generates two symmetric PWM signals that go directly into the AFE device. The two symmetric PWM signals are 66% and 33% duty cycle. These signals are added together inside the AFE device and create a waveform that has the least amount of noise. Figure 4-1 shows how this addition works.

GUID-72C3A0C7-937A-4980-858F-A4F03975A289-low.jpgFigure 4-1 PWM Addition

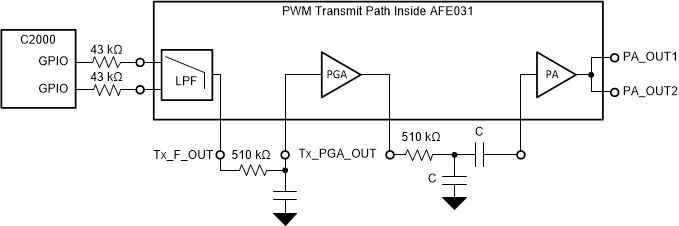

The path of the PWM signals is shown in Figure 4-2. The PWM signals go into the low-pass filter internal to the AFE030/1 device, and are added together to create the above PWM1+PWM2 waveform.

GUID-A240D75B-094C-45DF-9227-7C29F42E83E9-low.gifFigure 4-2 PWM Transmit Path

The gains witnessed at certain frequencies at the output of the internal TX low-pass filter are shown in Figure 4-3.

GUID-E9B99E90-03AA-4462-8E92-D50C72F0799F-low.pngFigure 4-3 TX Filter Gain vs. Frequency

Next, the signal goes through a low-pass filter, PGA, another low-pass filter, and finally out of the PA. The external low-pass filters can be tuned to filter the desired frequencies shown in Table 4-2.

Table 4-2 External R and C Values to Increase Filter Response in PWM Applications
Frequency BandR (Ω)C (nF)
SFSK: 63 kHz, 74 kHz5102.7
CENELEC A5101.5
CENELEC B,C,D5101
