3.6 LPDDR4 Keepout Region

The region of the PCB used for LPDDR4 circuitry must be isolated from other signals. The LPDDR4 keepout region is defined for this purpose and is shown in Figure 3-3. The size of this region varies with the placement and DDR routing. Non-LPDDR4 signals should not be routed on the DDR signal layers within the LPDDR4 keepout region. Non-LPDDR4 signals may be routed in this region only if they are routed on other layers separated from the DDR signal layers by a ground layer. No breaks are allowed in the reference ground layers in this region. In addition, a solid VDDS_DDR power plane should exist across the entire keepout region.

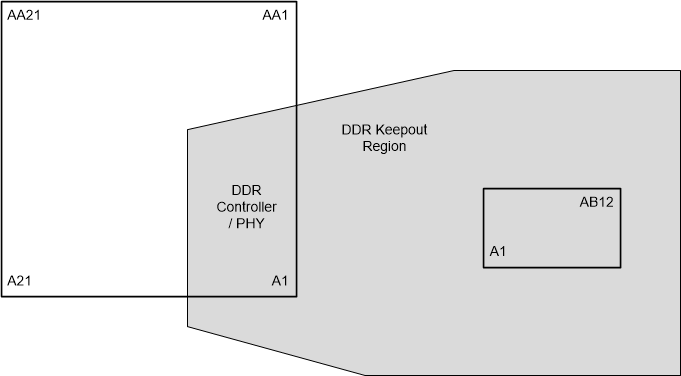

GUID-20200903-CA0I-QD6X-5WDK-WDTH5Z41ZFMG-low.gif Figure 3-3 LPDDR4 Keepout Region
