5 Via Sharing

The Via Channel Array BGA pattern implemented on the AM62xSiP design offers several opportunities for via sharing. Vias are shared across BGA pins. Figure 5-1 and Figure 5-2 show the via sharing opportunities for VDD_CORE and VSS power supplies, respectively. Via sharing across BGA pins provides for easier escape routing and robust electrical connection by connecting multiple pins.

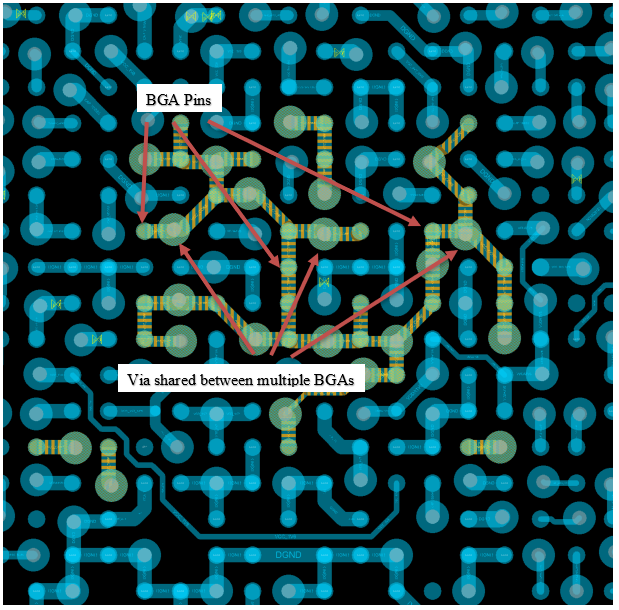

GUID-7F251A92-61E1-47BE-8686-CDF169360DE2-low.png Figure 5-1 Via Sharing for VDD_CORE Domain
GUID-9EF9AE76-C604-4AE1-9147-BAACE404BBED-low.png Figure 5-2 Via Sharing for VSS
