6.3.13 Background CRC for CLA-PROM (CLAPROMCRC)

The CLAPROMCRC is a safety feature performs CRC on a configurable block of memory in the CLA program ROM space. Neither the C28x nor the CLA have access to compute CRC on the CLA program ROM. The CLAPROMCRC solves this problem by calculating a CRC in a non-intrusive manner (that is, without impacting CLA accesses to CLA PROM). It is a hardware CRC-32 module tbat automatically fetches the CLA program ROM in background during idle cycles (when CLA is not accessing the ROM on the CLA program bus), and calculates the CRC-32 in order to perform a code integrity check. It then compares the result with a golden CRC-32 value and registers pass or fail condition. The module issues an interrupt on completion of the test.

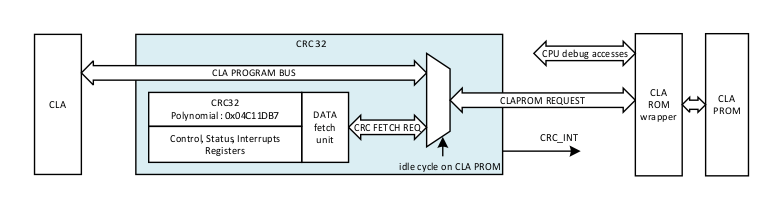

Figure 6-3 is a functional diagram of the CLAPROMCRC module.

GUID-2EADB49C-DA39-438E-AC26-26FA62FF356C-low.gif Figure 6-3 CLAPROMCRC Functional Diagram
