3.4.3 Boot Modes

The boot mode for the processor is determined by a bank of DIP switches (SW8, SW9). All of the boot mode pins have weak pull down resistors and a switch capable of connecting to a strong pull up resister, as shown in Figure 3-7. Note that OFF setting provides a low logic level (‘0’) and an ON setting provides a high logic level (‘1’).

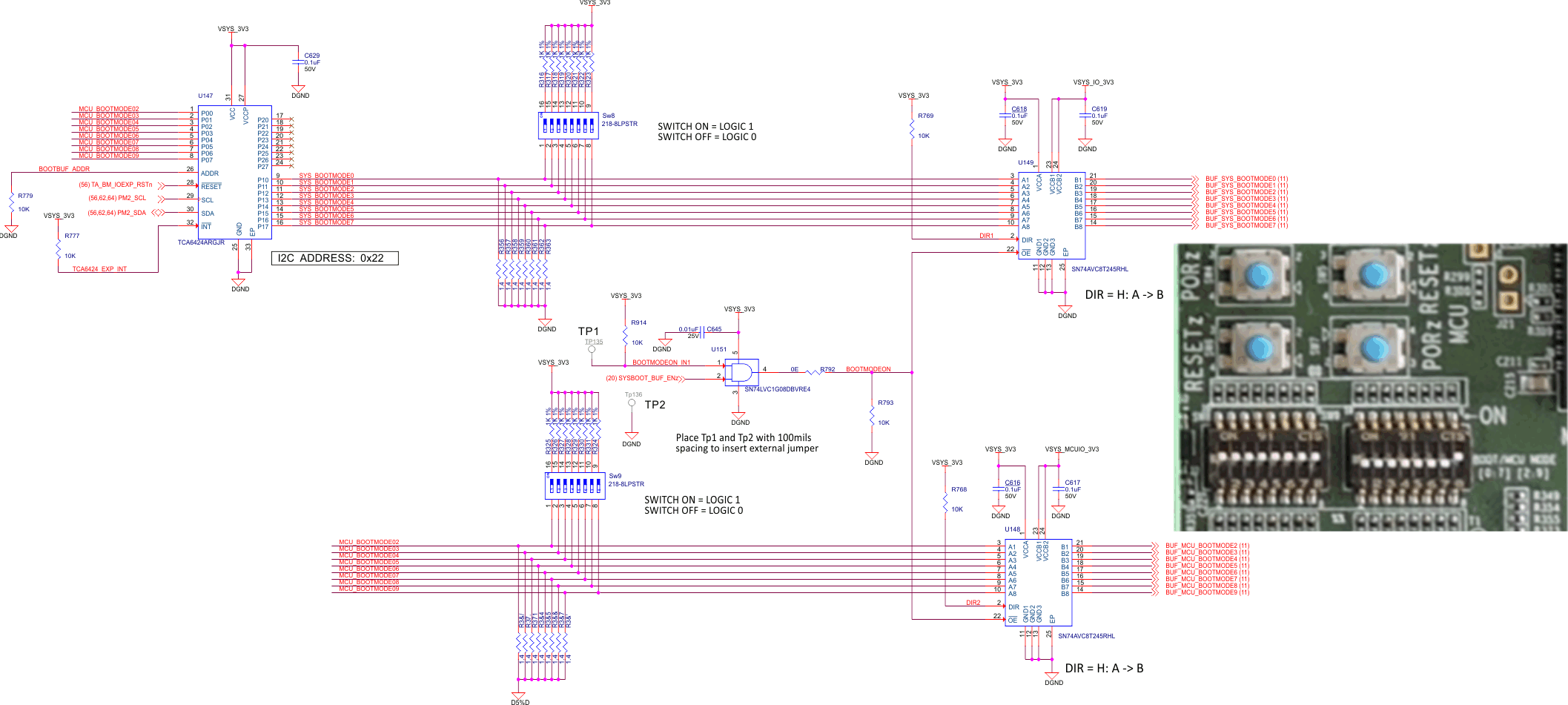

GUID-AF3436E9-AE88-4364-AF25-BD4AA63CC513-low.gif Figure 3-7 BOOT Switches Provided on the Processor Card

Table 3-8 and Table 3-9 provide the switch map to the boot mode functions. For specific settings for each boot interface, see DRA829/TDA4VM/AM752x Technical Reference Manual. The selectable boot interfaces supported on the EVM include: Octal-SPI, Quad-SPI, HyperFlash, SD-Card, eMMC, PCIe (as endpoint), CPSW, USB, UFS, UART, and EERPOM.

Table 3-8 Wakup Boot Mode Switch (SW9)
Wakeup Boot Pin Map
0:1
(Fixed to ‘00’)		 2
(SW9.1= OFF)		 3
(SW9.2)		 4
(SW9.3)		 5
(SW9.4)		 6
(SW9. 5)		 7
(SW9.6)		 8
(SW9.7)		 9
(SW9.8)
PLL Configuration (Fixed to 19.2 MHz) Primary Boot Mode A MCU Only Rsvd Rsvd (not for boot use)
Table 3-9 Main Boot Mode Switch (SW8)
Wakeup Boot Pin Map
0
(SW8.1)		 1
(SW8.2)		 2
(SW8.3)		 3
(SW8.4)		 4
(SW8.5)		 5
(SW8.6)		 6
(SW8.7)		 7
(SW9.8)
Primary Boot Mode B Backup Boot Mode Primary Boot Mode Config Backup Boot Mode Config
