4.5.2 Voltage Supervisor

The power rails are monitored to control the Power ON Reset (MCU_PORz) for SoC. Two supervisor devices are provided to monitor Main power input and VSYS_3V3.

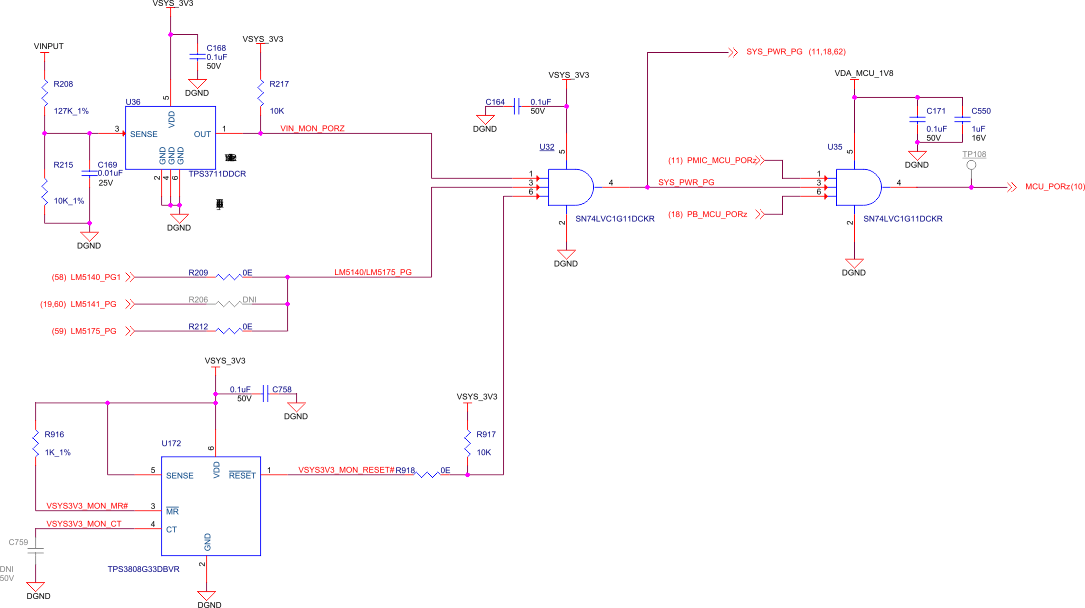

GUID-13935BBE-CA6E-401E-AE76-287F4394097B-low.gifFigure 4-5 Voltage Supervisor Circuit
