2.6 Security

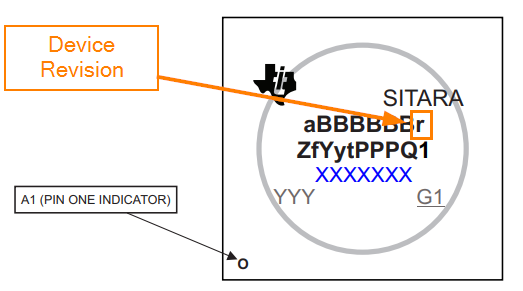

The AM243x LaunchPad may have a Non-Secure (GP or General Purpose) or a Secure device (HS-FS). To determine if the device is secure, refer to field parameter for device revision: "r" of the Device name. If the Device Revision is "B" or a subsequent alphabetical letter, then the device is a Secure device.

GUID-20230215-SS0I-MGR0-LNWP-MJG2FCQWTG8S-low.png Figure 2-5 Security Field Parameter

A Secure device has the ability to use a one time programming to convert the device from High Security Field Securable (HS-FS) to High Security Security Enforced (HS-SE).

A secure device leaves the TI factory in an HS-FS state where customer keys are not programmed and has the following attributes:

  • Does not enforce the secure boot process
  • M3 JTAG port is closed
  • R5 JTAG port is open
  • Security Subsystem firewalls are closed
  • SoC Firewalls are open
  • ROM Boot expects a TI signed binary (encryption is optional)
  • TIFS-MCU binary is signed by the TI private key

The One Time Programmable (OTP) keywriter converts the secure device from HS-FS to HS-SE. The OTP keywriter programs customer keys into the device eFuses to enforce secure boot and establish a root of trust. The secure boot requires an image to be encrypted (optional) and signed using customer keys, which will be verified by the SoC. A secure device in the HS-SE state has the following attributes:

  • M3, R5 JTAG ports are both closed
  • Security Subsystem and SoC Firewalls are both closed
  • TIFS-MCU and SBL need to be signed with active customer private key

Note: For additional information regarding using HS-FS devices with Code Composer Studio, refer to the HS FS Migration guide section of the AM243x MCU+ SDK. To access this guide, go to the file location for the AM243x MCU+ SDK and open README_FIRST_AM243X.html . When the html page loads, navigate to Migration Guides and then the HS FS Migration guide.
