4.8 USB 2.0 Interface

On the LaunchPad, a USB 2.0 interface is offered through a USB Type-C connector (J10). the USB DP and DM signals connect the USB0 port of the SoC through an ESD protection diode. The DP and DM sinals are shorted to the A and B option for DP and DM on the connector side in order to support the flip action in the cable.

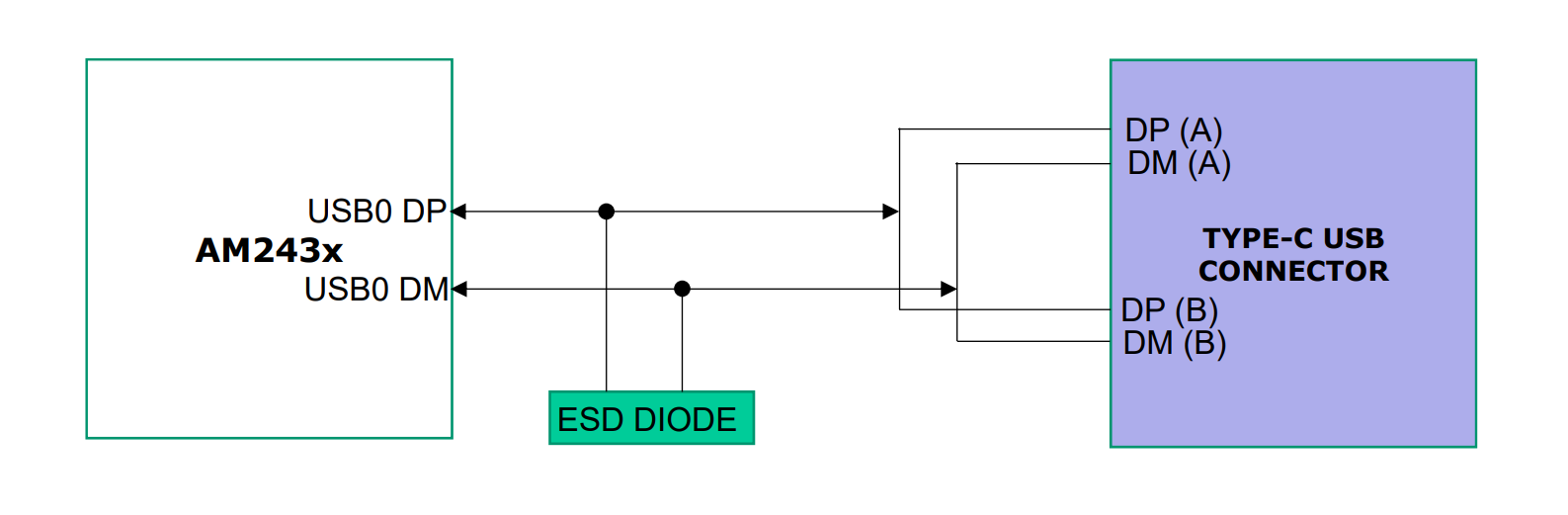

GUID-20210719-CA0I-XXH4-QQTD-TQK3KKNTLZZQ-low.png Figure 4-13 USB 2.0 Interface
