4.2 Recommended Erase Flow

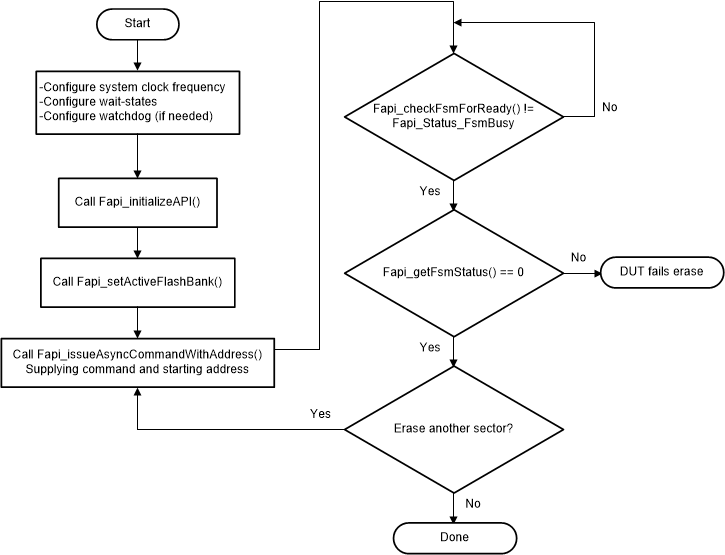

Figure 4-1 describes the flow for erasing a sector(s) on a device. For further information, see Section 3.2.2.

GUID-20211010-SS0I-XVRN-7P2C-JV2484N8PWHS-low.gif Figure 4-1 Recommended Erase Flow
