8.9.7.1 CSI Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETERMINTYPMAXUNIT
HPTX
HSTXDBRData bit rate(1/2/4 data lane PHY)150600Mbps
fCLKDDR clock frequency(1/2/4 data lane PHY)75300MHz
ΔVCMTX(LF)Common-level variation–5050mV
tR and tF20% to 80% rise time and fall time0.3UI
LPTX DRIVER
tEOTTime from start of THS-TRAIL period to start of LP-11 state105 + 12*UIns
DATA-CLOCK Timing Specification
UINOMNominal Unit Interval1.6713.33ns
UIINST,MINMinimum instantaneous Unit Interval1.131ns
TSKEW[TX]Data to clock skew measured at transmitter–0.150.15UIINST,MIN
CSI2 TIMING SPECIFICATION
TCLK-PRETime that the HS clock shall be driven by the transmitter before any associated data lane beginning the transition from LP to HS mode.8ns
TCLK-PREPARETime that the transmitter drives the clock lane LP-00 line state immediately before the HS-0 line state starting the HS transmission.3895ns
TCLK-PREPARE + TCLK-ZEROTCLK-PREPARE + time that the transmitter drives the HS-0 state before starting the clock.300ns
TEOTTransmitted time interval from the start of THS-TRAIL or TCLKTRAIL, to the start of the LP-11 state following a HS burst.105 ns + 12*UIns
THS-PREPARETime that the transmitter drives the data lane LP-00 line state immediately before the HS-0 line state starting the HS transmission40 + 4*UI85 + 6*UIns
THS-PREPARE + THS-ZEROTHS-PREPARE + time that the transmitter drives the HS-0 state prior to transmitting the Sync sequence.145 ns + 10*UIns
THS-EXITTime that the transmitter drives LP-11 following a HS burst.100ns
THS-TRAILTime that the transmitter drives the flipped differential state after last payload data bit of a HS transmission burstmax(8*UI, 60 ns + 4*UI)ns
TLPXTXXXransmitted length of any low-power state period50ns
GUID-491969EB-1282-4642-B615-4FB0BDAC0A51-low.gifFigure 8-9 Clock and Data Timing in HS Transmission
GUID-46DF489C-1AE6-4BE2-B8D0-B4B7CAAF2E0E-low.gifFigure 8-10 High-Speed Data Transmission Burst
The HS to LP transition of the CLK does not actually take place since the CLK is always ON in HS mode.

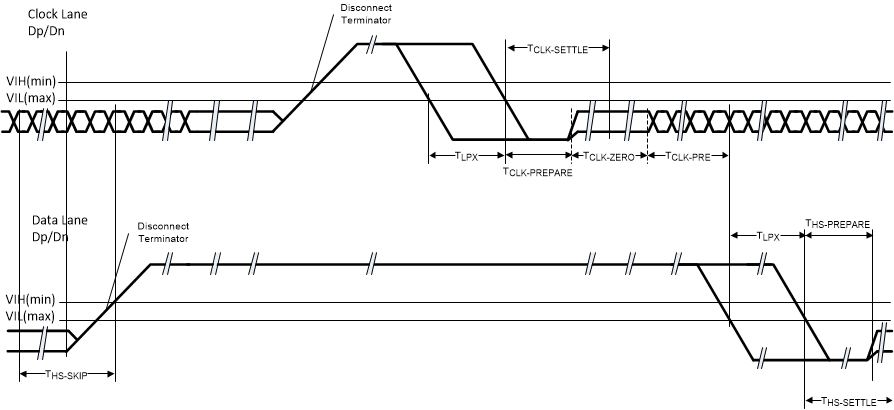

Figure 8-11 Switching the Clock Lane Between Clock Transmission and Low-Power Mode
