8.16.5 TX Performance

GUID-C26A7157-A474-4BD2-9D2E-B06866F006F1-low.gifFigure 8-18 Output Power vs.
Temperature (BLE 1 Mbps, 2.44 GHz, 0 dBm)



GUID-0619E64F-13C0-49BF-87E8-3EB60EE8A9AC-low.gifFigure 8-19 Output Power vs.
Temperature (BLE 1 Mbps, 2.44 GHz, +5 dBm)
GUID-D0E75AF7-4EA7-4000-A45E-B0132394BEDC-low.gifFigure 8-20 Output Power vs.
Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz, 0 dBm)



GUID-91CA2CE2-BADD-48B4-A296-0BE24634813F-low.gifFigure 8-21 Output Power vs.
Supply Voltage (VDDS) (BLE 1 Mbps, 2.44 GHz, +5 dBm)

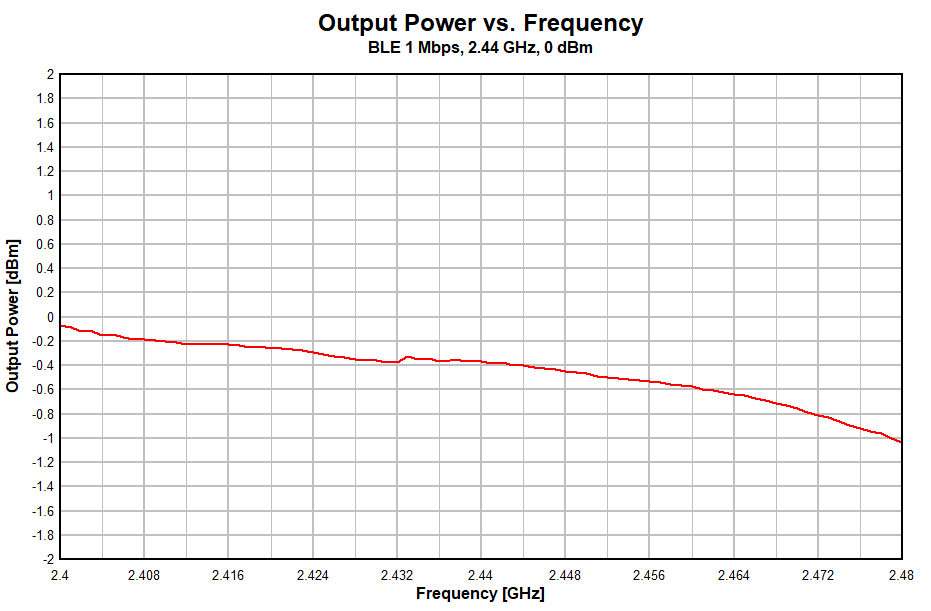

GUID-631E1702-4556-47FC-B79C-4A9C98BDAE97-low.gifFigure 8-22 Output Power vs.
Frequency (BLE 1 Mbps, 2.44 GHz, 0 dBm)



GUID-70684C93-90EA-415D-A340-4EAF41451F2D-low.gifFigure 8-23 Output Power vs.
Frequency (BLE 1 Mbps, 2.44 GHz, +5 dBm)
GUID-C389B191-B8EE-4F51-914D-4687F21F636C-low.gifFigure 8-24 Compensated Frequency Accuracy vs.
Temperature (2.44 GHz)
